Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. It is only necessary to lower the headliner. Only do those step in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement .

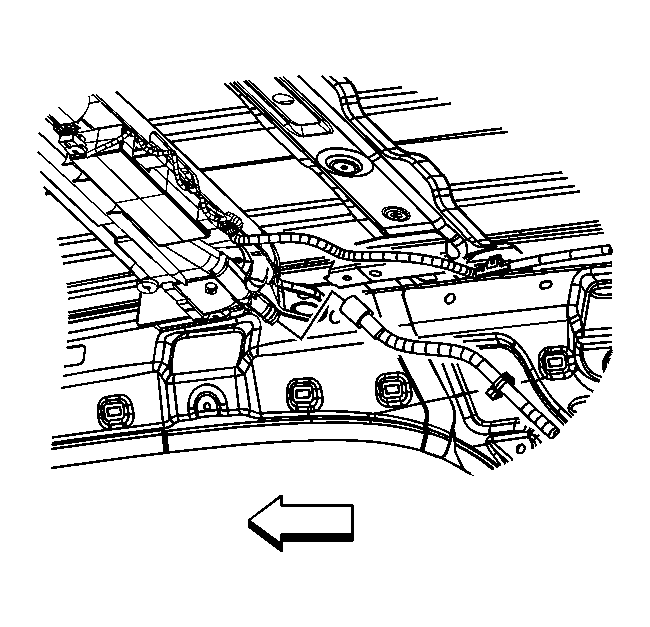

    2. Fig 1: View Of Rear Drain Hose At Sunroof Module
    GM1378635Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear drain hoses from the sunroof module.
  3. Remove the tape from the drain hose.
    4. Fig 2: View Of Rear Drain Hose
    GM1378638Courtesy of GENERAL MOTORS CORP.
  4. Remove the upper portion of the rear drain hoses from the retaining clips.
  5. Remove the rear side trim panels. Refer to Center Pillar Upper Garnish Molding Replacement .
  6. Remove the lower portion of the rear drain hoses from the retaining clips.
  7. Pull the rear drain hoses up through the side rail.
