Brake Pressure Modulator Valve Bracket Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

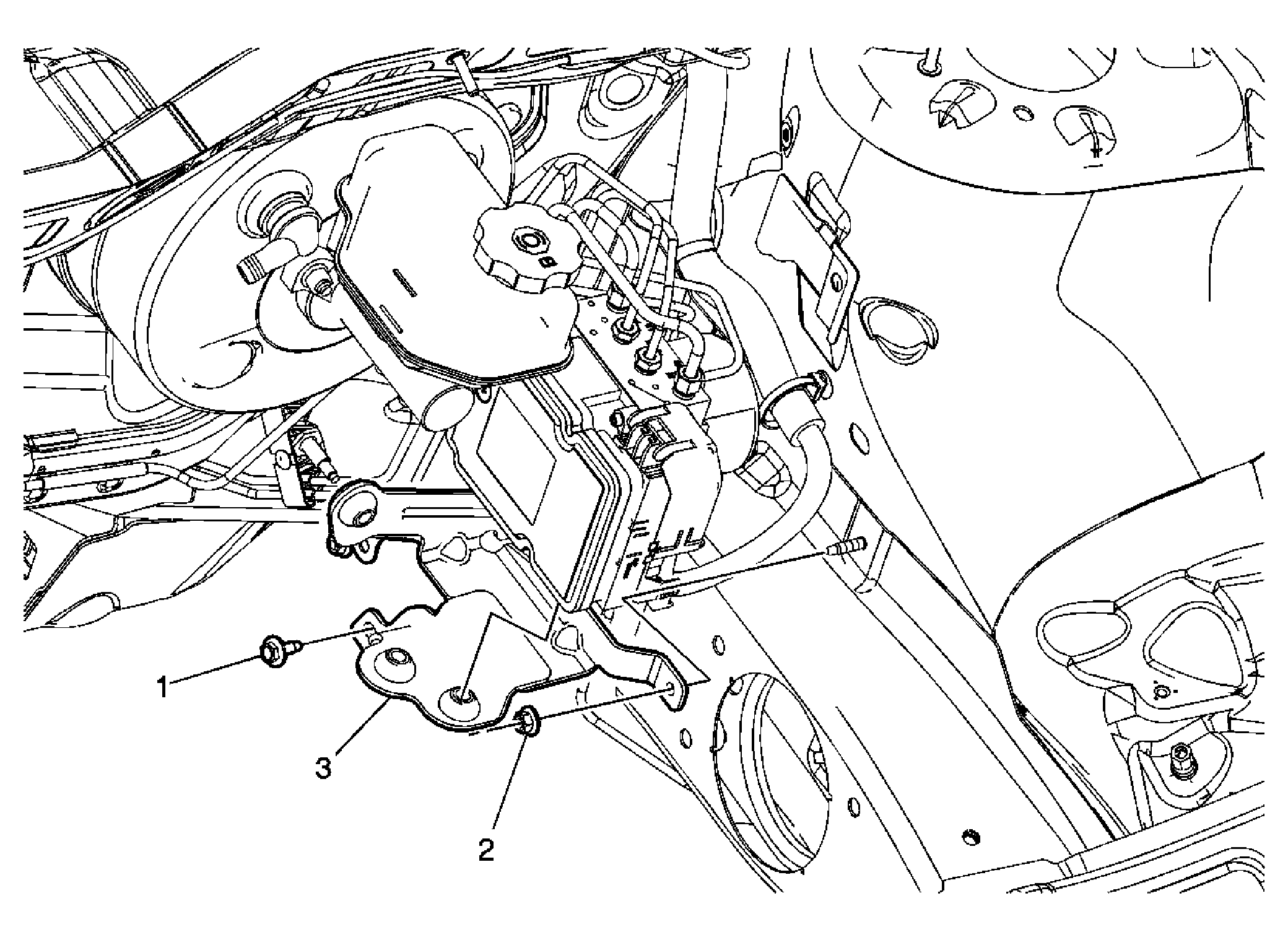

Fig 1: View Of rake Pressure Modulator Valve Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Place the ignition switch in the OFF position. Remove the underhood electrical center bracket. Refer to Underhood Electrical Center or Junction Block Bracket Replacement .
1	Brake Modulator Assembly Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten: 20 N.m (15 lb ft)
2	Brake Modulator Assembly Bracket Nut (Qty: 2) Tighten: 10 N.m (89 lb in)
3	Brake Modulator Assembly Bracket Tip: Without disconnecting the brake pipe fittings, carefully remove and support the brake modulator assembly.
