Outside Rearview Mirror Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

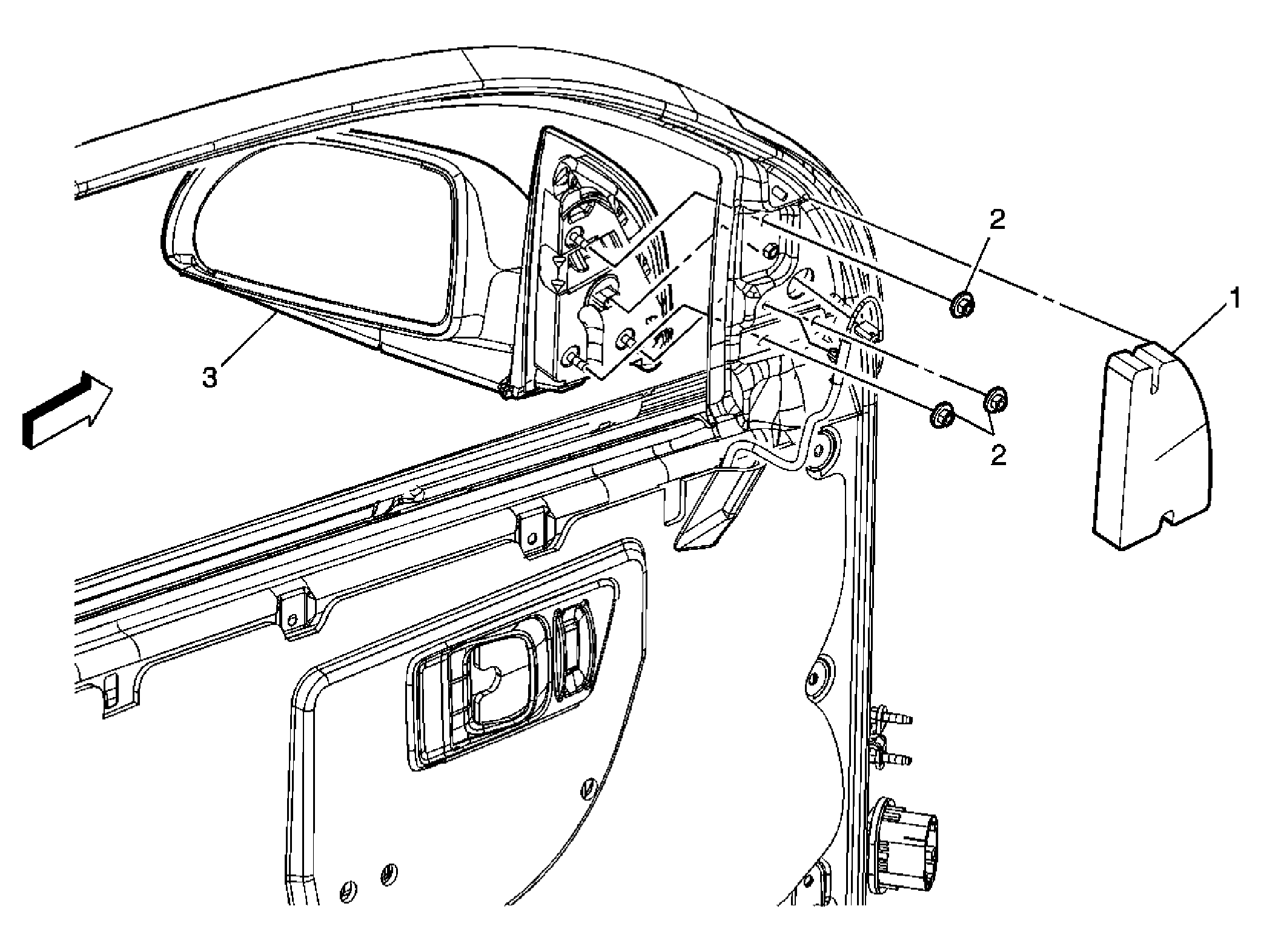

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove front door upper trim panel. Refer to Upper Extension Trim Panel Replacement (Front Side Door) or Upper Extension Trim Panel Replacement (Rear Side Door) . |
|
| 1 | Front Side Door Inner Panel Insulator |
| 2 | Front Side Door Outside Rear View Mirror Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 3 | Front Side Door Outside Rear View Mirror Assembly Procedure: Disconnect the electrical connector. |
