Windshield Washer Nozzle Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

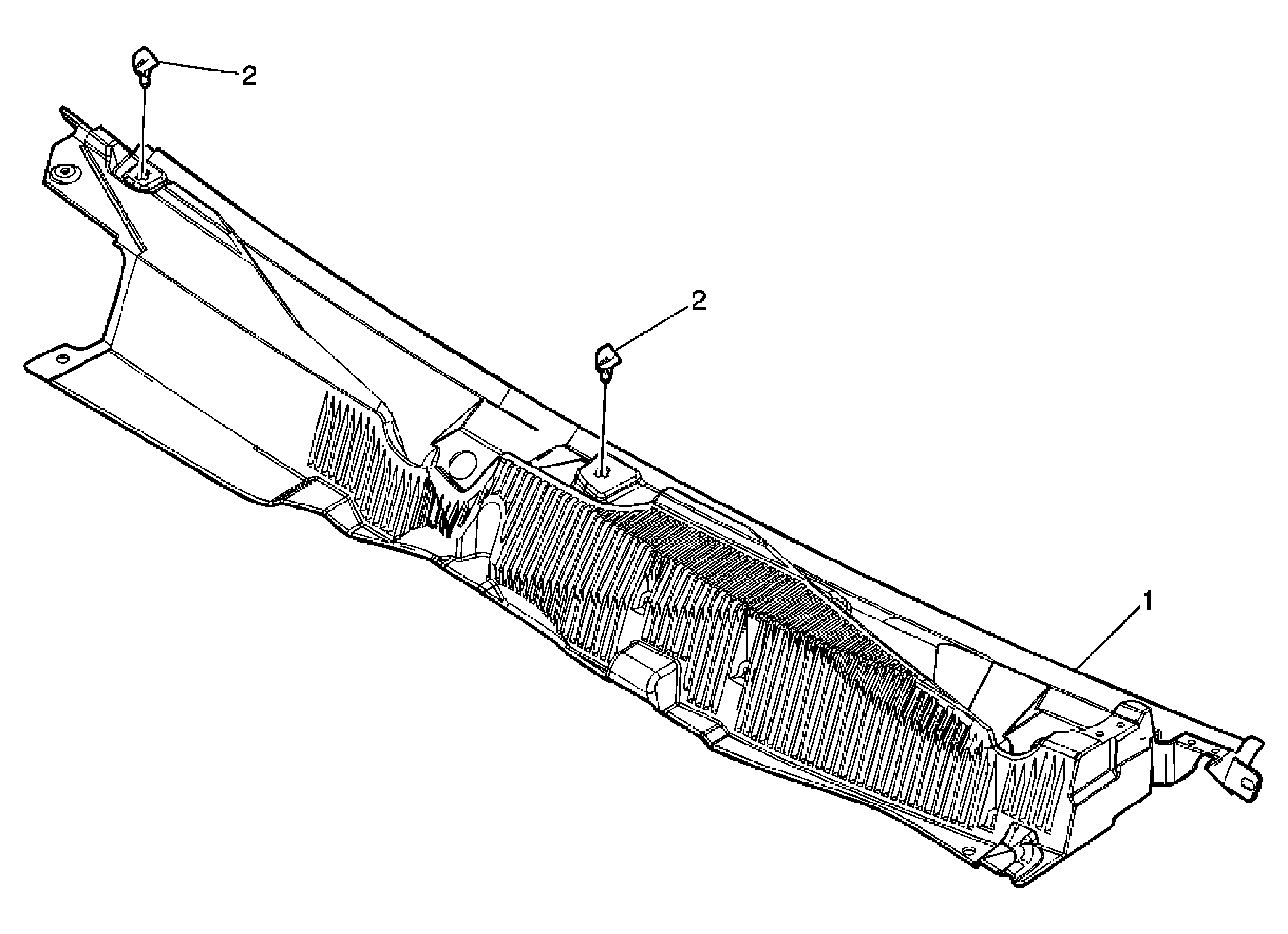

| Callout | Component Name |
|---|---|
| 1 | Air Inlet Grille Panel Assembly Refer to Air Inlet Grille Panel Replacement . |
| 2 | Front Windshield Washer Nozzle (Qty: 2) Tip: Depress the washer nozzle tabs to disengage the nozzle from the air inlet grille. |
