Air Inlet Grille Panel Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

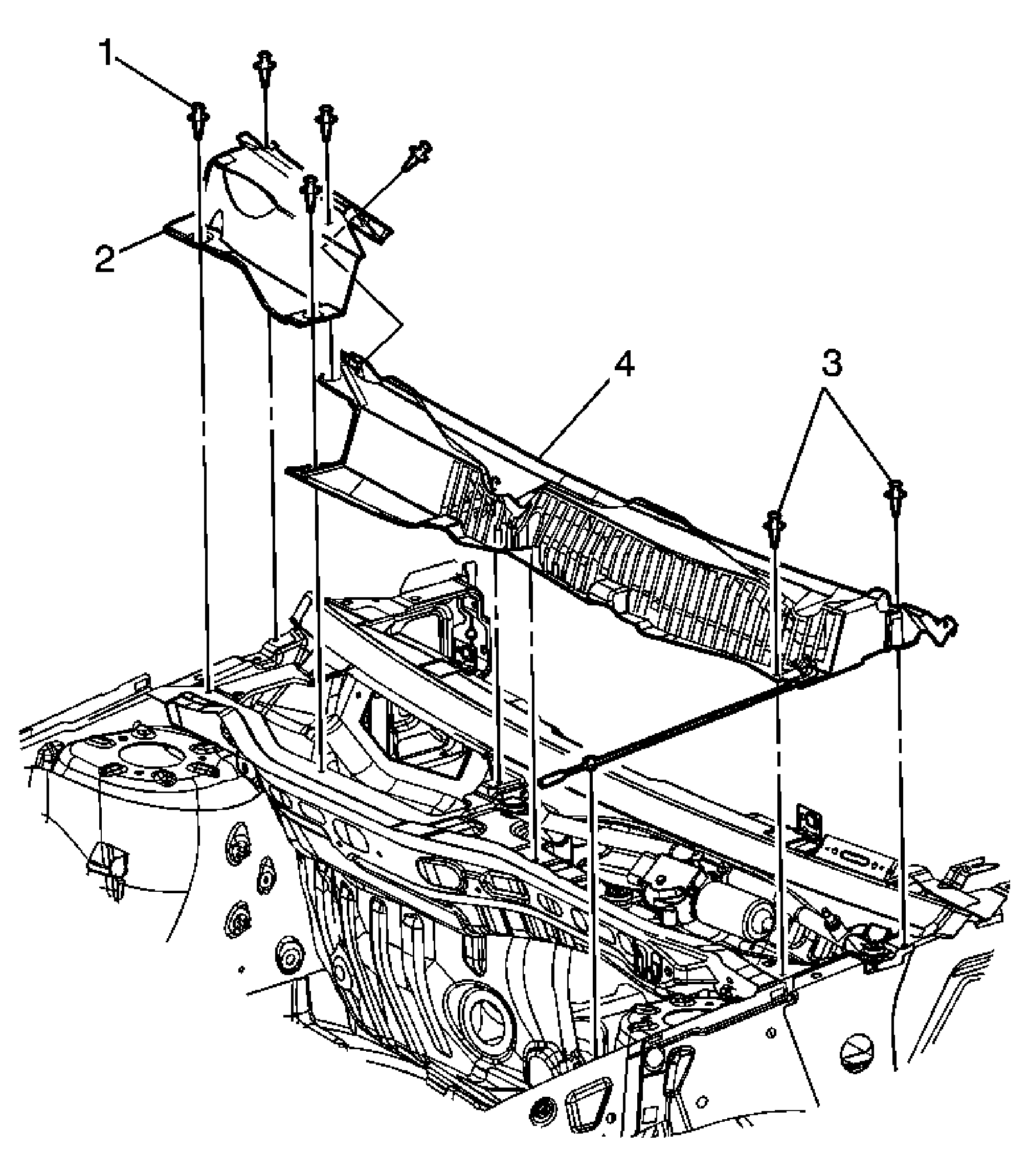

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the wiper arm. Refer to Windshield Wiper Arm Replacement . |
|
| 1 | Air Inlet Grille Panel Retainer (Qty: 4) |
| 2 | Air Inlet Grille Panel |
| 3 | Air Inlet Grille Panel Retainer (Qty: 4) |
| 4 | Air Inlet Grille Panel Procedure: Disconnect the front washer hose from the front washer nozzles in the air inlet grille panel. |
