Washer Pump Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

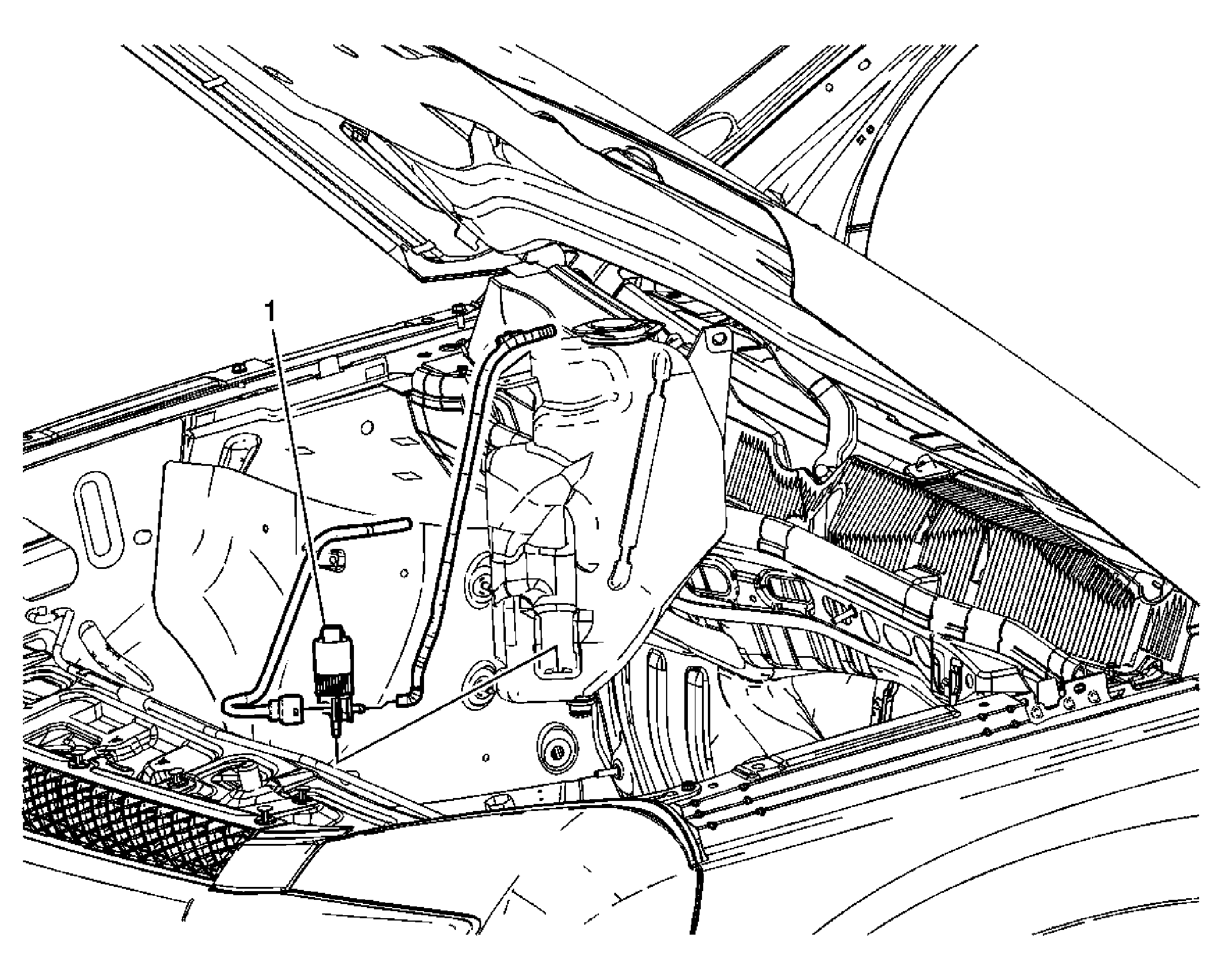

Fig 1: View Of Washer Pump Filter Grommet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the battery box. Refer to Battery Box Replacement . Remove the windshield washer container. Refer to Windshield Washer Solvent Container Replacement .
1	Windshield Washer Pump Procedure Disconnect the front washer hose from the pump. Disconnect the rear washer hose from the pump. Disconnect the electrical connector. Gently pry upward using two flat-bladed tools under the washer pump at the grommet.

Callout

Component Name

Preliminary Procedures

Remove the battery box. Refer to Battery Box Replacement .
Remove the windshield washer container. Refer to Windshield Washer Solvent Container Replacement .

Windshield Washer Pump

Procedure

Disconnect the front washer hose from the pump.
Disconnect the rear washer hose from the pump.
Disconnect the electrical connector.
Gently pry upward using two flat-bladed tools under the washer pump at the grommet.
