Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

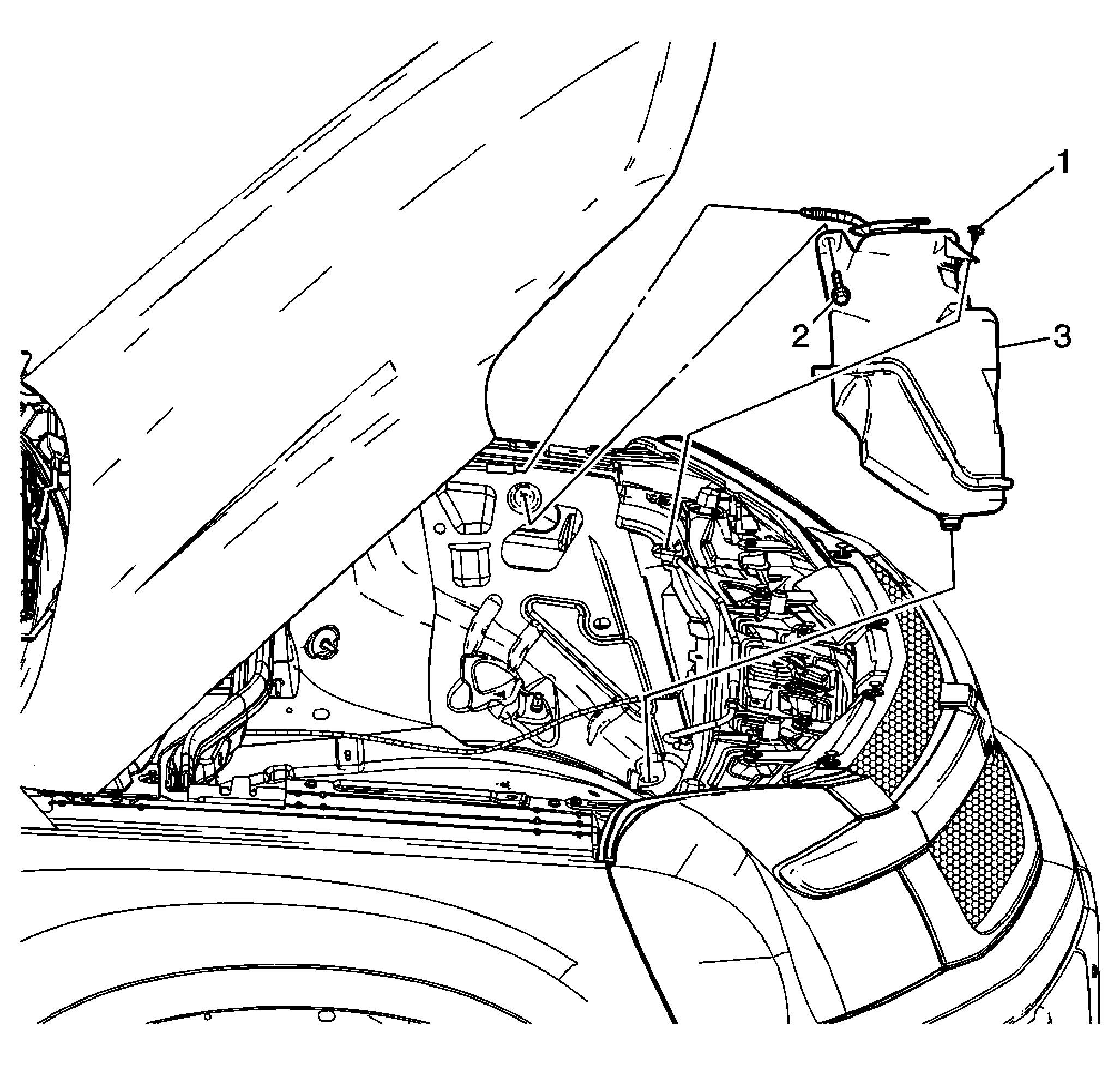

Fig 1: View Of Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the coolant surge tank bolt and set the surge tank aside in the engine compartment, leaving the coolant lines attached to the tank. Refer to Radiator Surge Tank Replacement .
1	Windshield Washer Reservoir Screw CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (25 lb in)
2	Windshield Washer Reservoir Bolt Tighten: 6 N.m (53 lb in)
3	Windshield Washer Reservoir Procedure Drain the headlamp washer solvent into a suitable container by disconnecting the headlamp washer hose at the headlamp washer pump spout. Disconnect the washer hoses from the pump and container.
