Windshield Wiper Arm Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

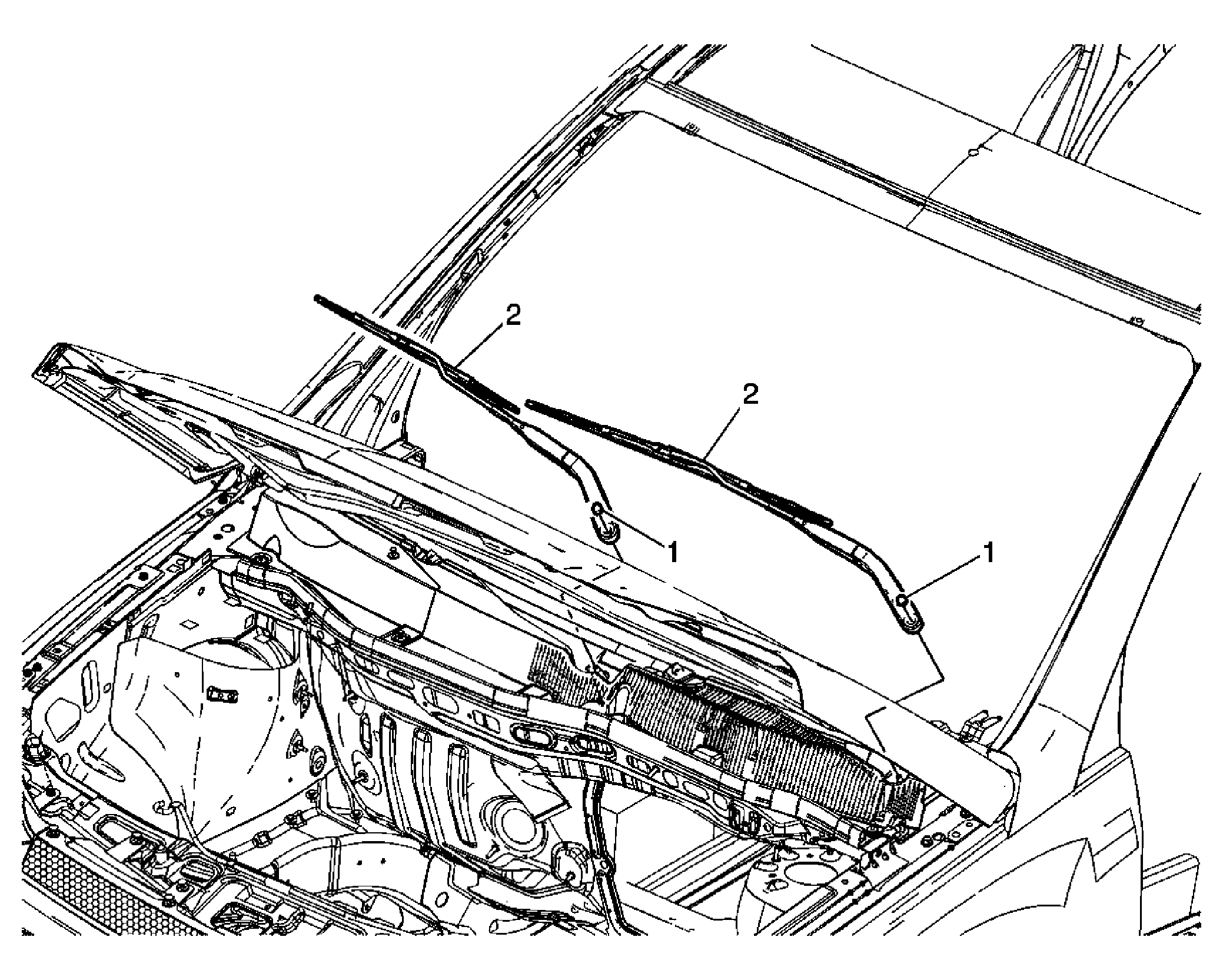

Fig 1: View Of Windshield Wiper Arm

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Arm Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 28 N.m (21 lb ft)
2	Windshield Washer Arm Assembly Tip: Position wiper blade assembly at the dot in lower portion of windshield blackout strip on driver side of vehicle. Position wiper blade assembly at the dot in windshield pillar portion of windshield blackout strip on passenger side of vehicle.
