Rear Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

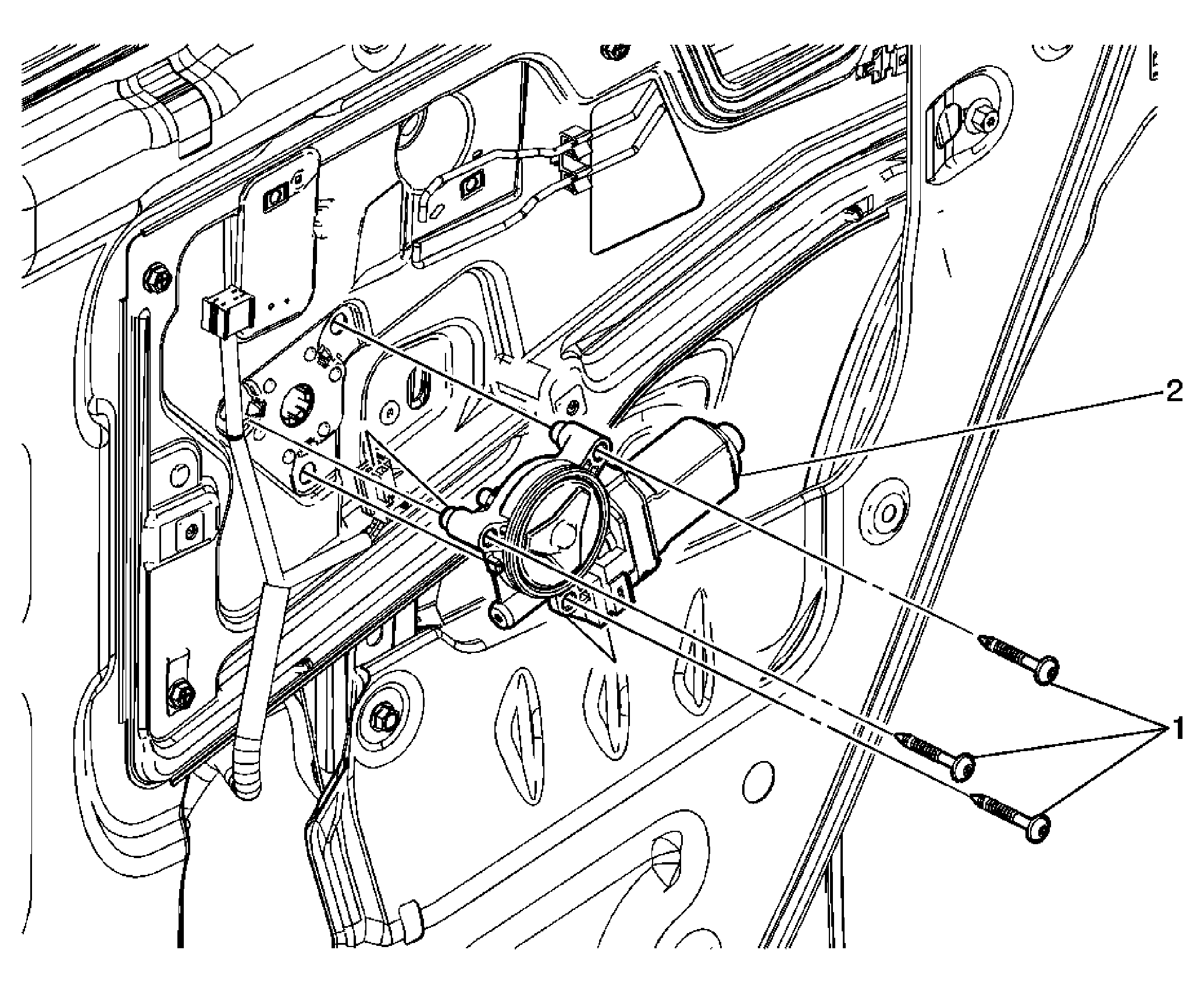

Fig 1: View Of Rear Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove rear door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Side Door Window Regulator Motor Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Rear Side Door Window Regulator Motor Assembly Procedure: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove water deflector. Refer to Rear Side Door Water Deflector Replacement .

Rear Side Door Window Regulator Motor Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Rear Side Door Window Regulator Motor Assembly
Procedure:
Disconnect the electrical connector.
