Rear Bumper Fascia Replacement (Sky)

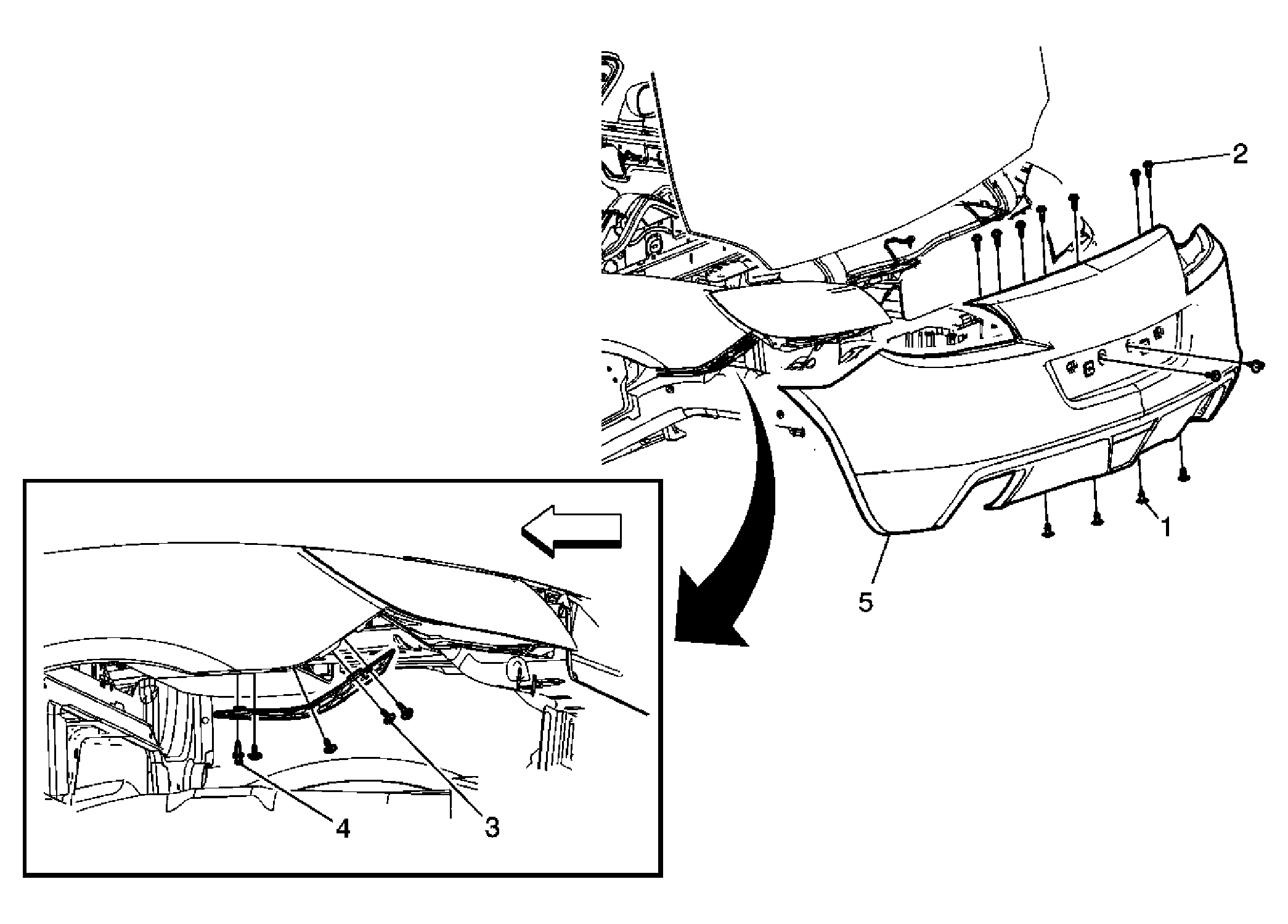

Fig 1: View Of Rear Fascia & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the tail lamp assembly. Refer to Tail Lamp Replacement (SKY) or Tail Lamp Replacement (Solstice) . Remove the right and left rear wheelhouse. Refer to Rear Wheelhouse Liner Panel Replacement .
1	Rear Fascia Retainers (Qty: 4)
2	Rear Fascia Screws (Qty: 7) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Rear Fascia Bracket Screws (Qty: 8) Procedure: Reach between the fascia and the quarter panel to loosen the bolts. Tighten: 2 N.m (18 lb in)
4	Rear Fascia Bracket Push-Pin (Qty: 2)
5	Rear Fascia Tip: Disconnect the lamp connectors.
