Tail Lamp Replacement (SKY)

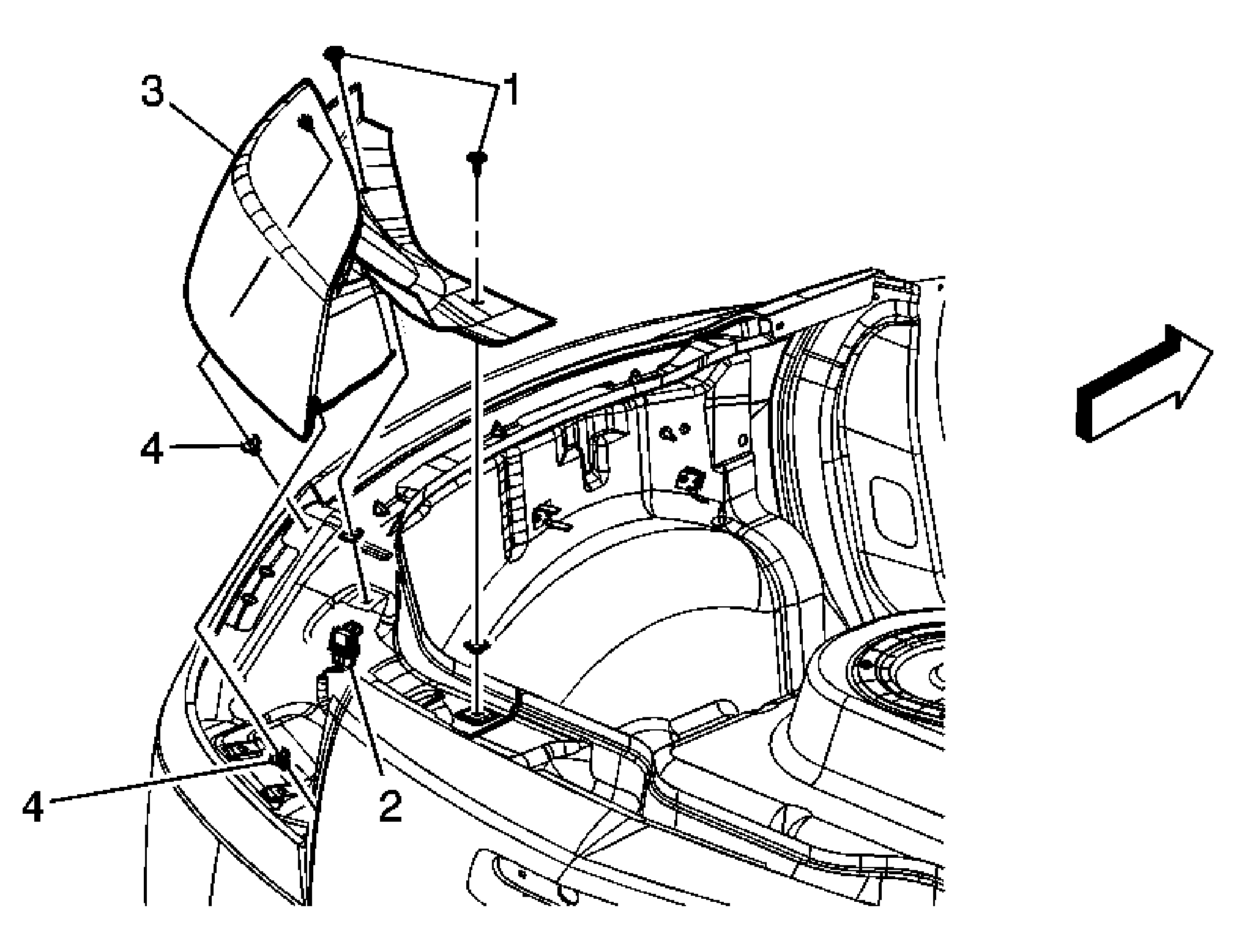

Fig 1: View Of Tail Lamp Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Open the rear compartment lid in order to access the tail lamp screws.
1	Tail Lamp Assembly Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Chassis Electrical Connector Tip: Lift the tail lamp in order to disengage the retainer clips then disconnect the electrical connector.
3	Tail Lamp Assembly Tip: Transfer the bulb into the new tail lamp.
4	Quarter Filler Panel Nut (Qty: 2) Tip: Ensure the quarter filler panel nuts are not damaged. Replace if damaged.
