Hood Hinge Replacement

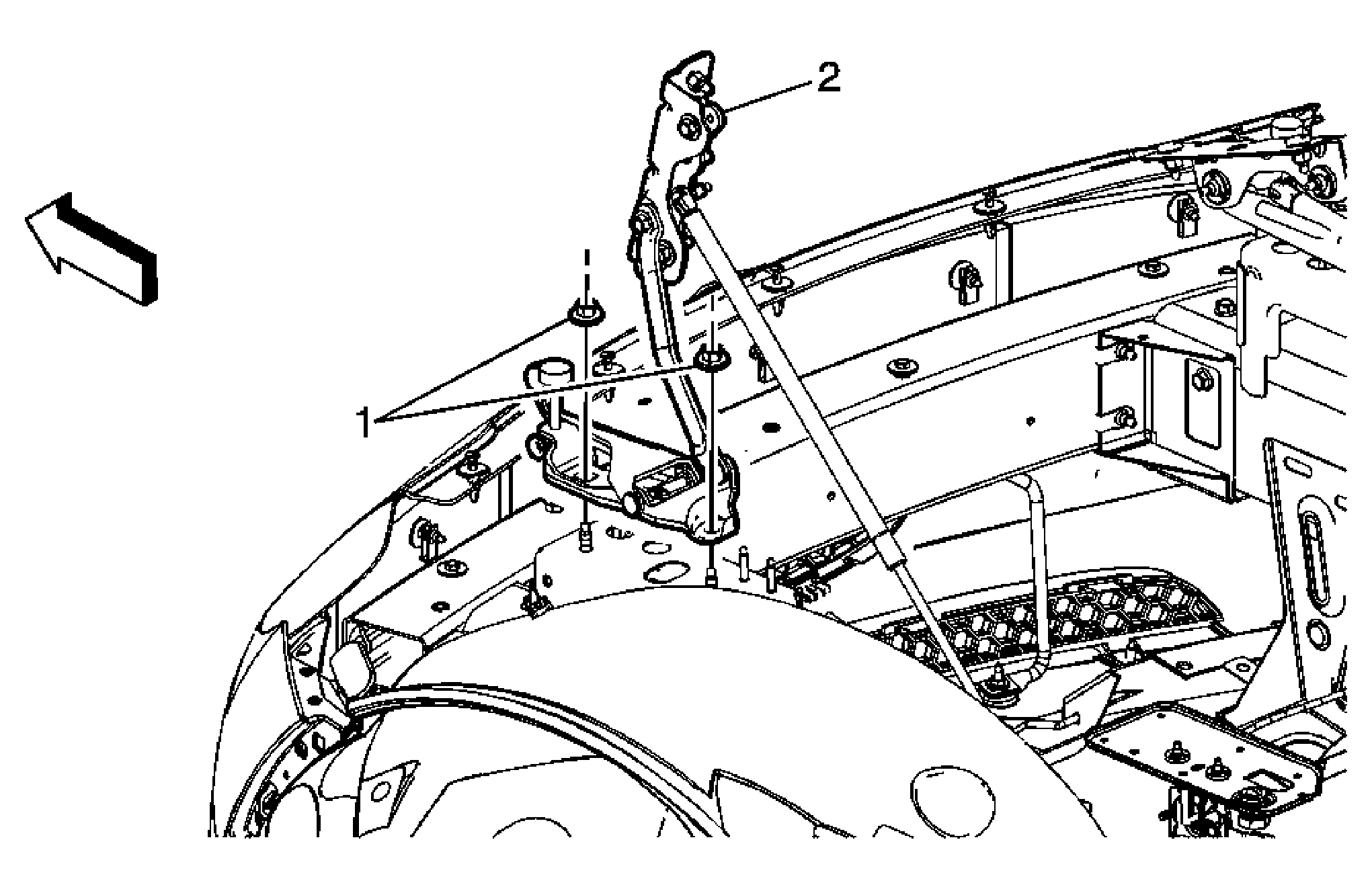

Fig 1: View Of Hood Hinge & Nuts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the hood. Refer to Hood Replacement . Remove the hood strut rod. Refer to Hood Strut Replacement .
1	Hood Hinge Nuts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Hood Hinge

Callout

Component Name

Preliminary Procedure

Hood Hinge Nuts (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 25 N.m (18 lb ft)

Hood Hinge
