Front Side Door Check Link Replacement

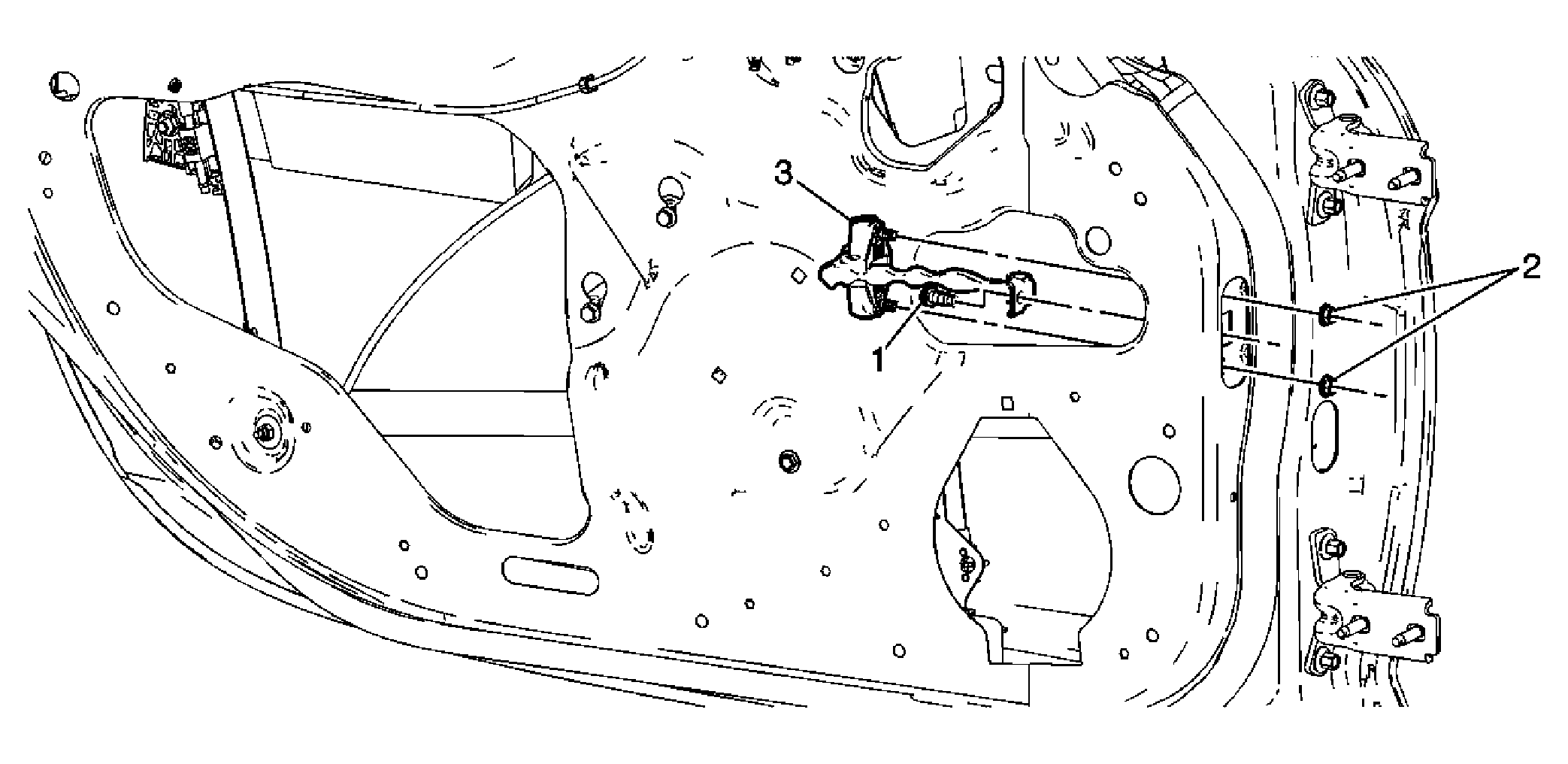

Fig 1: View Of Front Door Check Link, Nuts & Bolt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Door Trim Panel Replacement . Remove the water deflector. Refer to Door Water Deflector Replacement . Move the window to the full up position.
1	Front Side Door Check Link Bolt NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Front Side Door Check Link Nut (Qty: 2) Tighten: 10 N.m (89 lb in)
3	Front Side Door Check Link Assembly Tip: Remove the check link from the inside of the door.
