Door Trim Panel Replacement

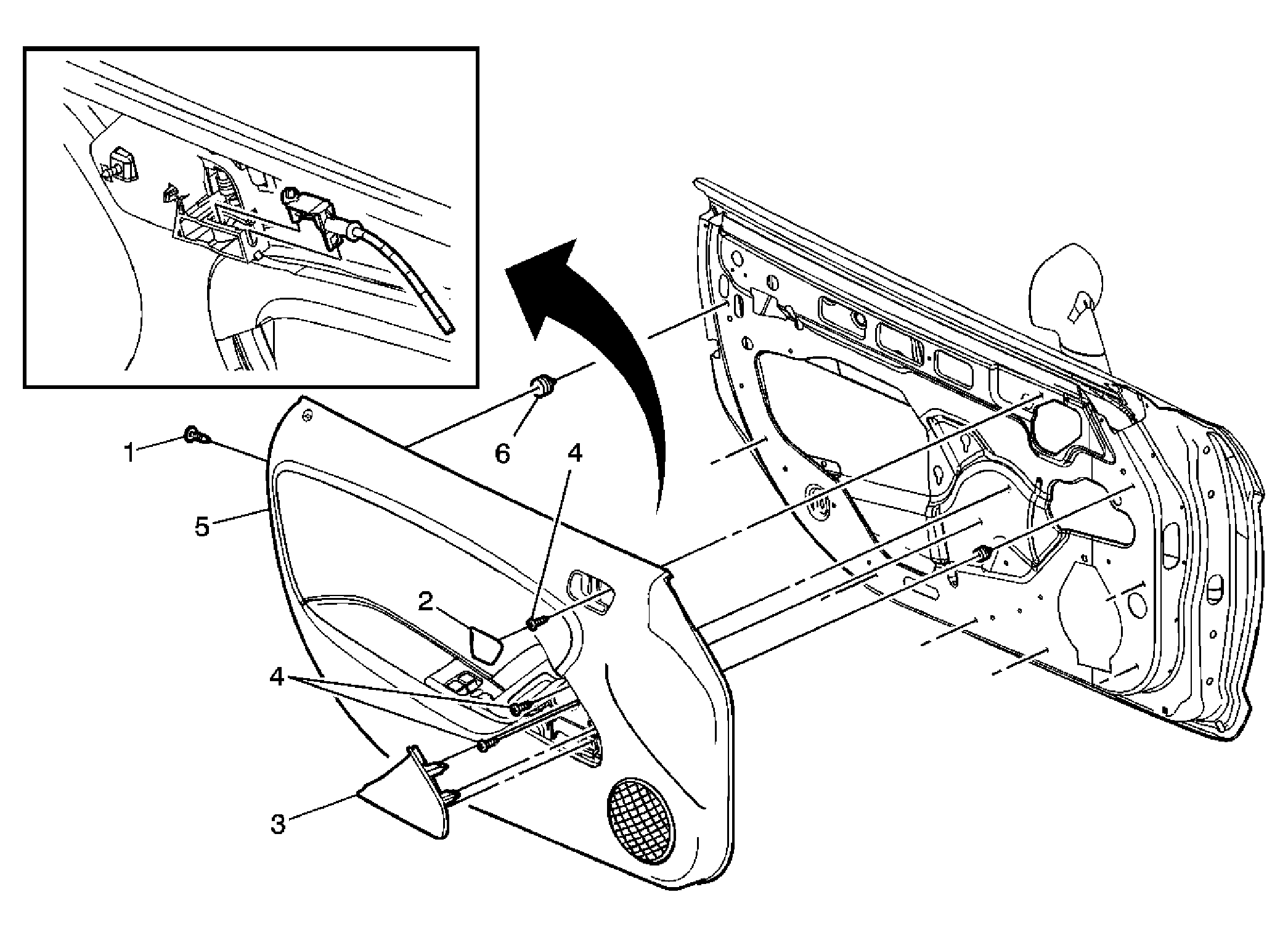

Fig 1: View Of Door Trim Panel & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Trim Panel Screw, if equipped NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Inside Door Handle Bezel Plug
3	Front Side Door Trim Panel Cover Assembly
4	Front Side Door Trim Panel Screw (Qty: 3) Tighten: 2 N.m (18 lb in)
5	Front Side Door Trim Panel Assembly Procedures Use a J 38778 Door Trim Clip Remover to aid in the removal of the door trim panel. Pull up on front side door lock retainer to disengage cable. Disconnect electrical connectors.
6	Front Side Door Trim Retainer (Qty: 9)
