Front Door Opening Weatherstrip Replacement

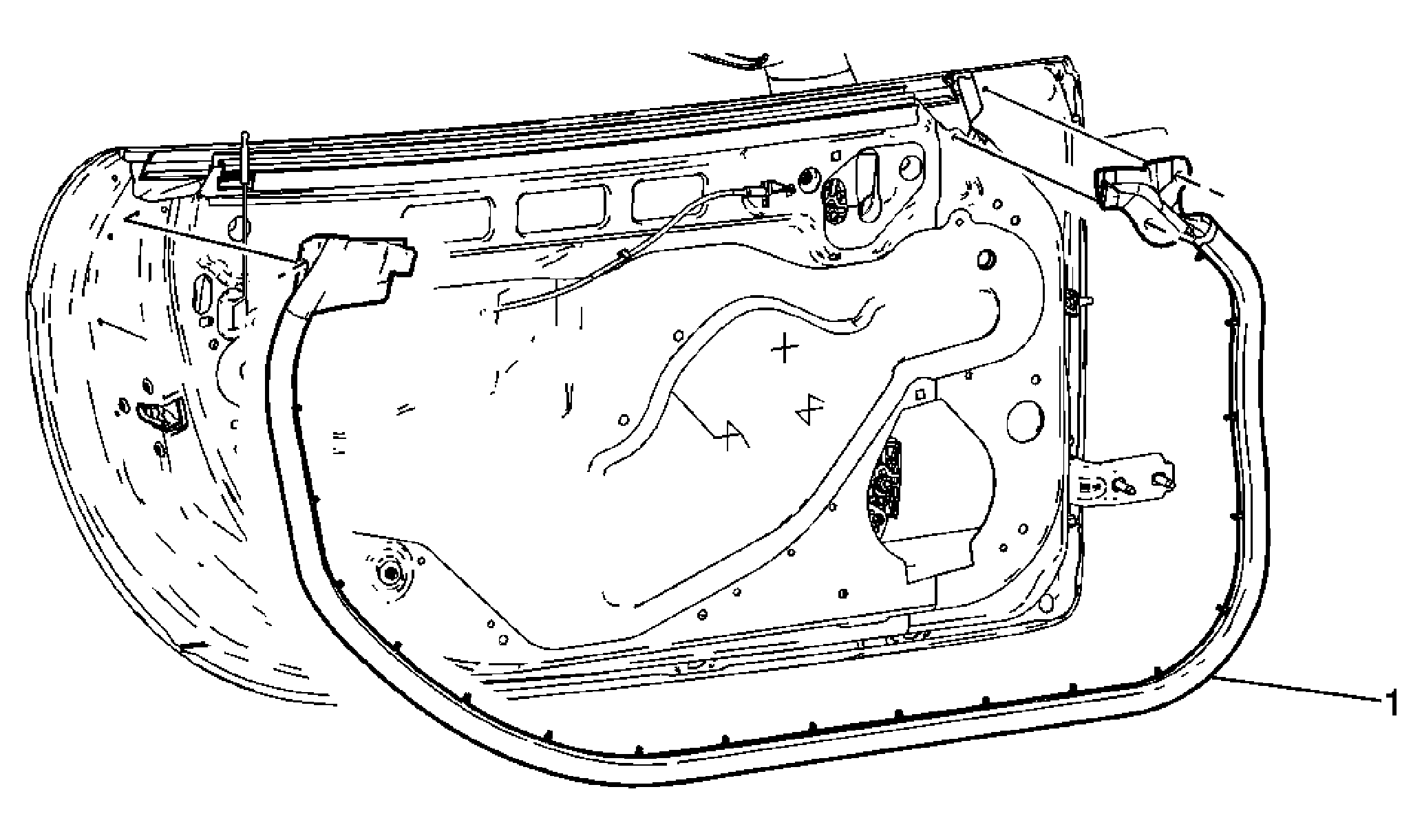

Fig 1: View Of Front Door Opening Weatherstrip
GM1581323Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the interior trim panel. Refer to Door Trim Panel Replacement .
1 Front Door Opening Weatherstrip
Tip:  Pull the weatherstrip away from the door to release the retainers.
