Knee Bolster Replacement (SKY)

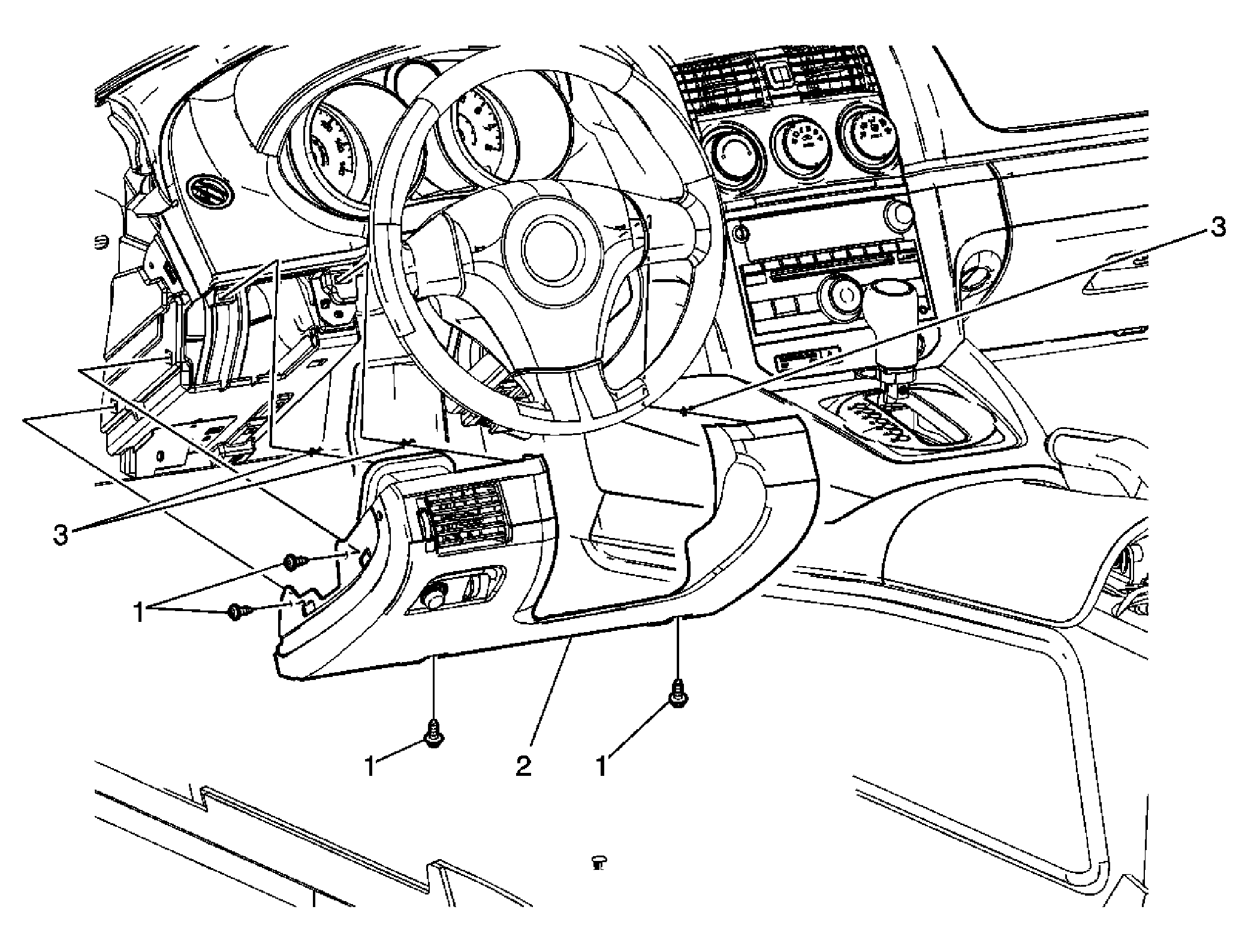

Fig 1: View Of Knee Bolster, Retainer Clips & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left instrument panel closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (SKY) or Instrument Panel Insulator Panel Replacement - Left Side (Solstice) . Remove the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (SKY) .
1	Knee Bolster Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Knee Bolster Assembly Procedures Disconnect the electrical connectors. When replacing the knee bolster assembly, transfer all necessary components.
3	Retainer Clips (Qty: 3)
