Instrument Panel Insulator Panel Replacement - Left Side (SKY)

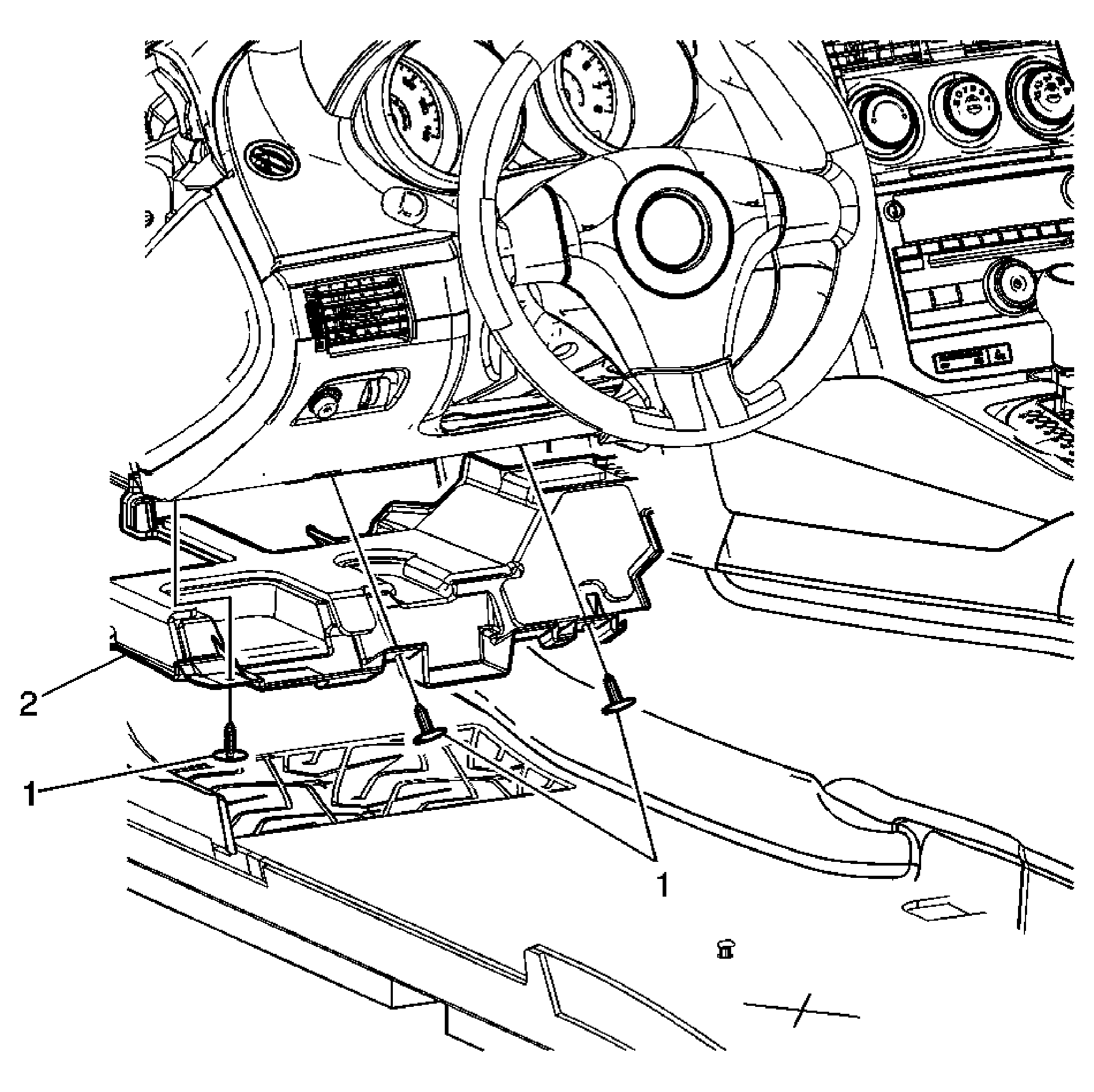

Fig 1: View Of Instrument Panel Insulator Panel & Push-in Fasteners (Left Side)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Closeout Insulator Push-in Fastener (Qty: 3)
2	Closeout Insulator Assembly Tip:  Ensure the tab on the far left side of the insulator panel locks in behind the left hinge pillar trim panel.
