Floor Panel Carpet Replacement

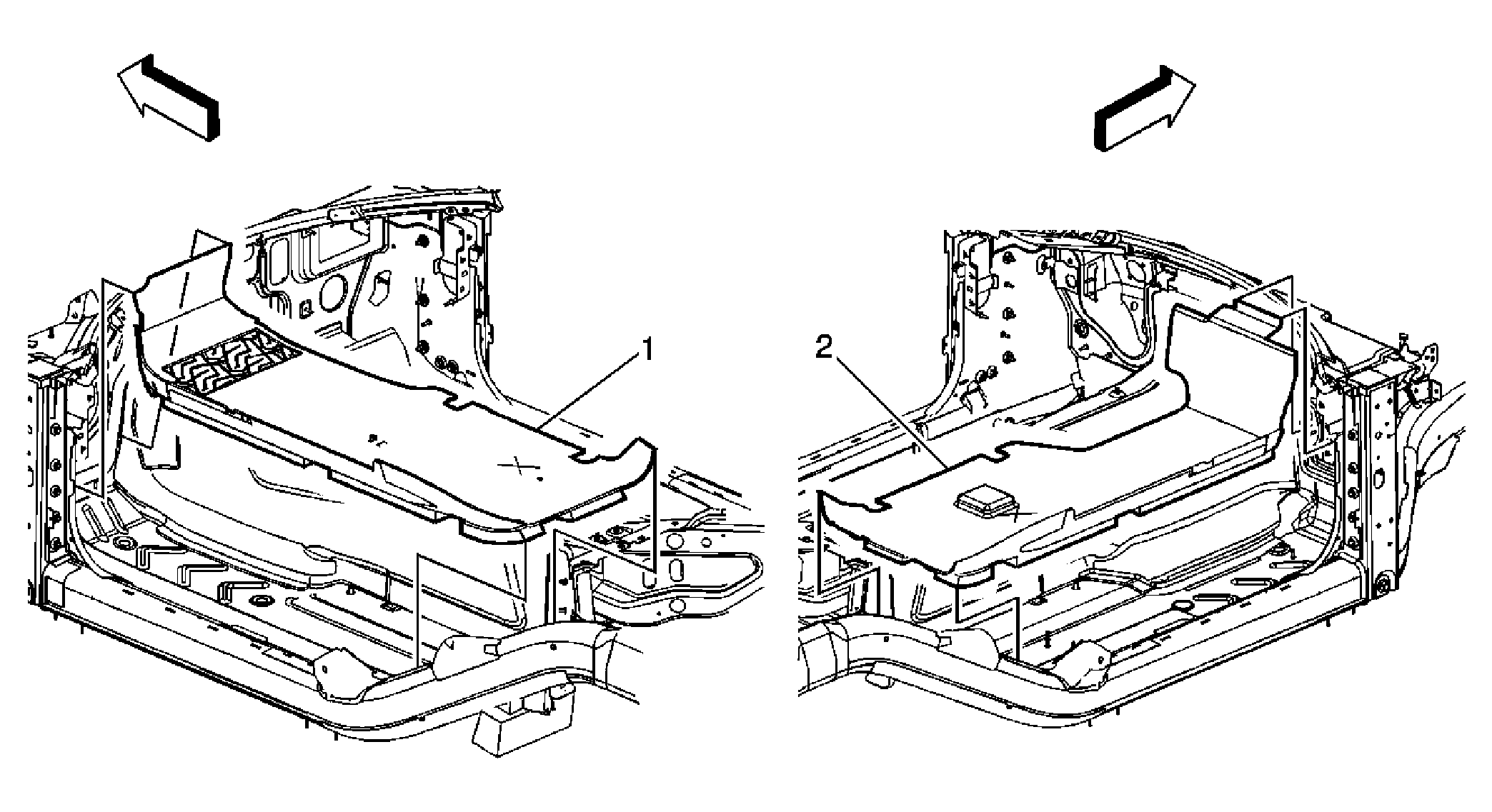

Fig 1: Identifying Floor Panel Carpet

GM1766648

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Remove the seats. Refer to Seat Replacement .
Remove the door sill trim. Refer to Door Sill Plate Replacement .
Remove the hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement .
Remove lock pillar trim. Refer to Body Lock Pillar Trim Panel Replacement .
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .

1

Front Floor Panel Carpet Driver Side Assembly

2

Front Floor Panel Carpet Passenger Side Assembly
