Body Hinge Pillar Trim Panel Replacement

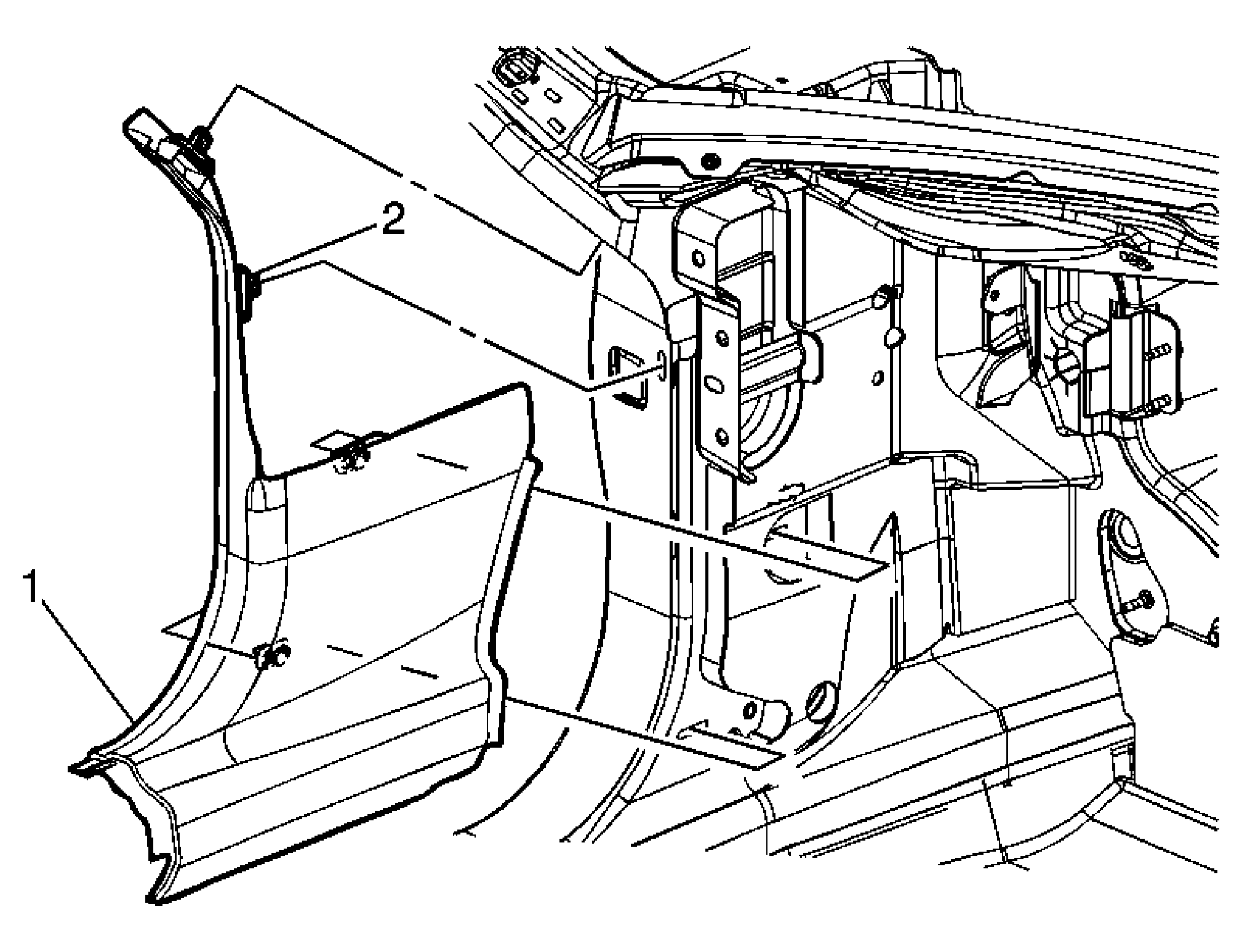

Fig 1: View Of Body Hinge Pillar Trim Panel & Retainers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedure:  Remove the door sill plate. Refer to Door Sill Plate Replacement .
1	Molding, Body Hinge Pillar Upper Garnish
2	Retainer, Body Hinge Pillar Upper Garnish Molding
