Front Bumper Fascia Replacement

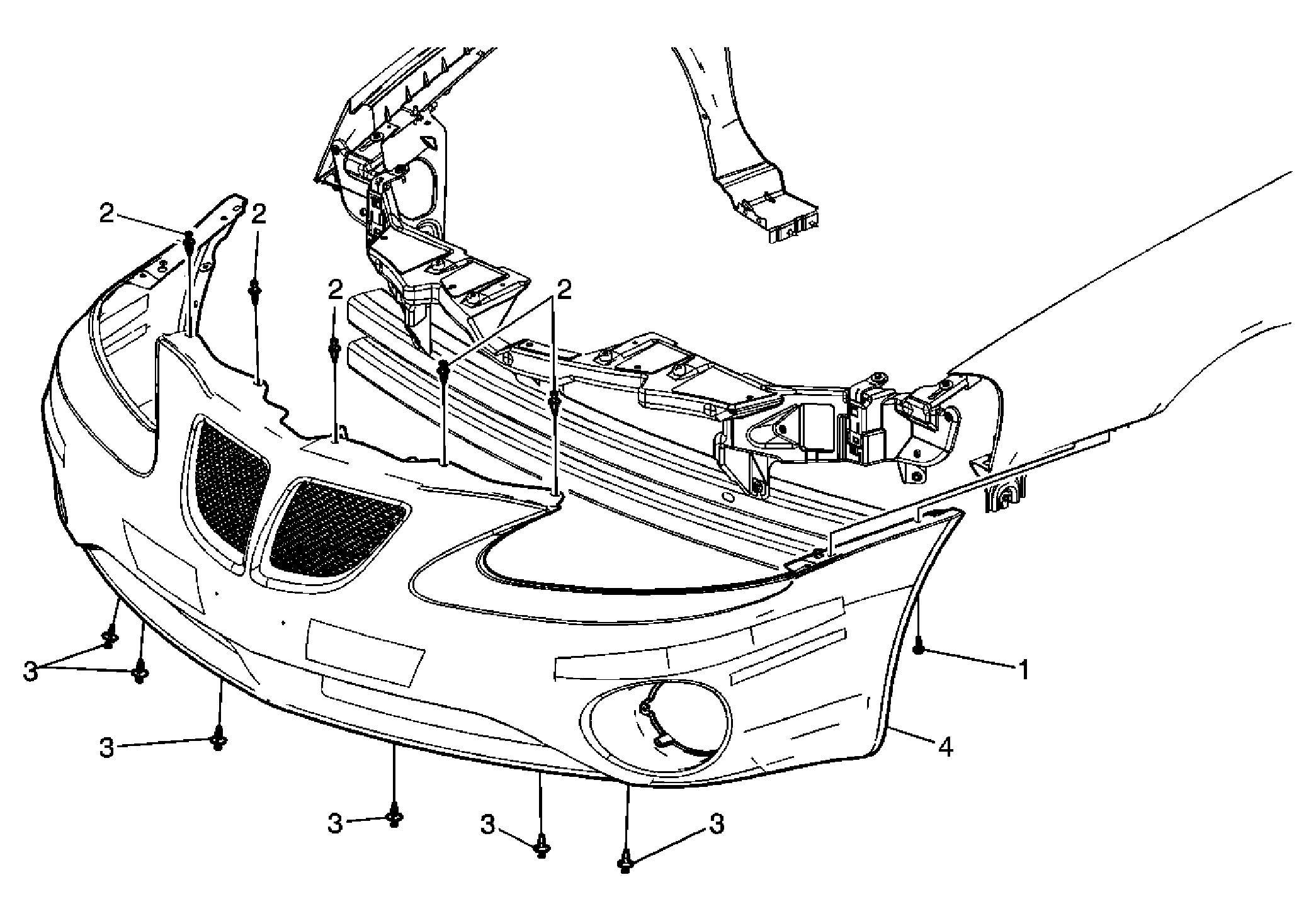

Fig 1: Front Bumper Fascia Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front fender liner. Refer to Front Fender Liner Replacement . Remove the fog lamp. Refer to Front Fog Lamp Replacement (GT) or Front Fog Lamp Replacement (GXP) .
1	Front Fascia Bolts (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Front Fascia Retainers (Qty: 5)
3	Front Fascia Retainers (Qty: 6)
4	Front Bumper Fascia
