Front Fog Lamp Replacement (GXP)

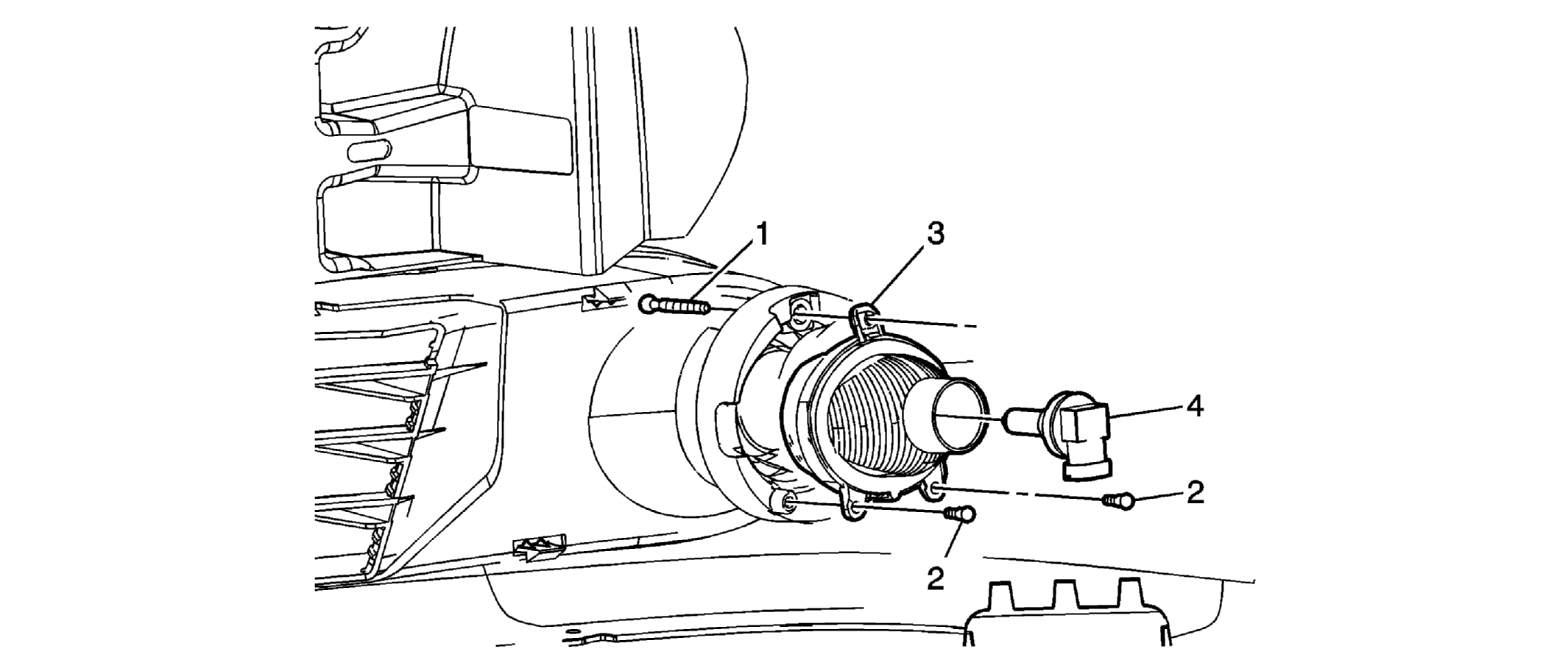

Fig 1: Identifying Fog Lamp Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front fascia extension. Disconnect the electrical connector from the fog lamp bulb socket.
1	Front Fog Lamp Adjuster Screw Tip: Remove the adjuster screw from the fog lamp bracket and lamp assembly. Count the number of turns when removing the adjuster screw for a reference upon installation.
2	Front Fog Lamp Bracket Screws (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Fog Lamp Assembly Tip: Remove the fog lamp from the fog lamp bracket.
4	Front Fog Lamp Bulb CAUTION: Refer to Halogen Bulb Caution . Tip: Turn the bulb socket a quarter turn in order to remove from the lamp housing.
