Instrument Cluster Replacement

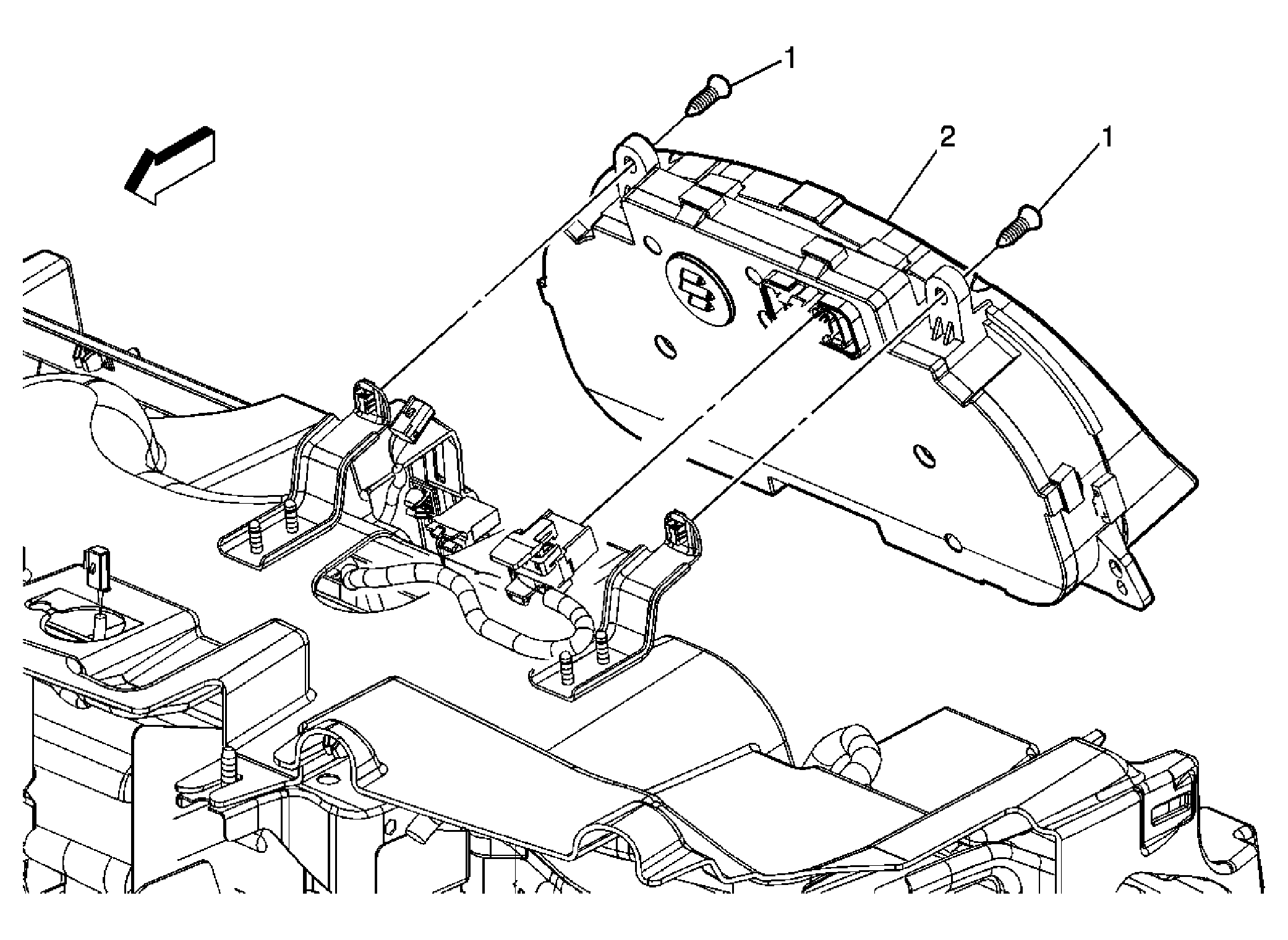

Fig 1: View Of Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the instrument panel cluster (IPC) trim. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
1	Cluster Assembly Screw NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Cluster Assembly Tip: Disconnect the electrical connector. Refer to Control Module References for programming and setup information.
