Instrument Panel Cluster Trim Plate Bezel Replacement

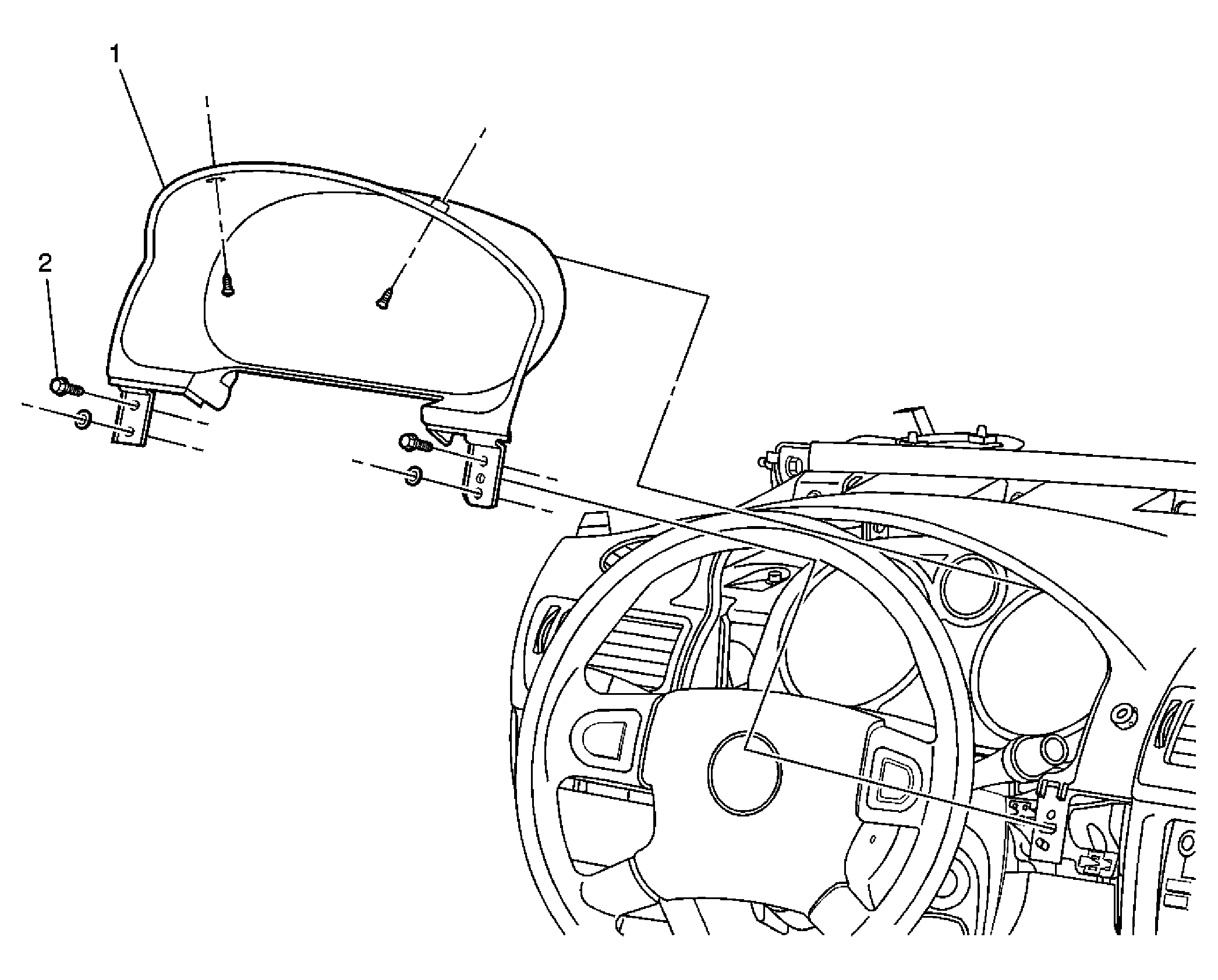

Fig 1: View Of Instrument Panel (I/P) Cluster Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel (I/P) trim plates. Refer to the following procedures: Instrument Panel Center Trim Panel Replacement Instrument Panel Trim Panel Replacement - Left Side Tilt the steering wheel down.
1	Instrument Panel Cluster Bezel Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2.2 N.m (19 lb in)
2	Panel Cluster Bezel Assembly

Callout

Component Name

Preliminary Procedures

Remove the instrument panel (I/P) trim plates. Refer to the following procedures:
- Instrument Panel Center Trim Panel Replacement
- Instrument Panel Trim Panel Replacement - Left Side
Tilt the steering wheel down.

Instrument Panel Cluster Bezel Screw (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 2.2 N.m (19 lb in)

Panel Cluster Bezel Assembly
