Instrument Panel Center Trim Panel Replacement

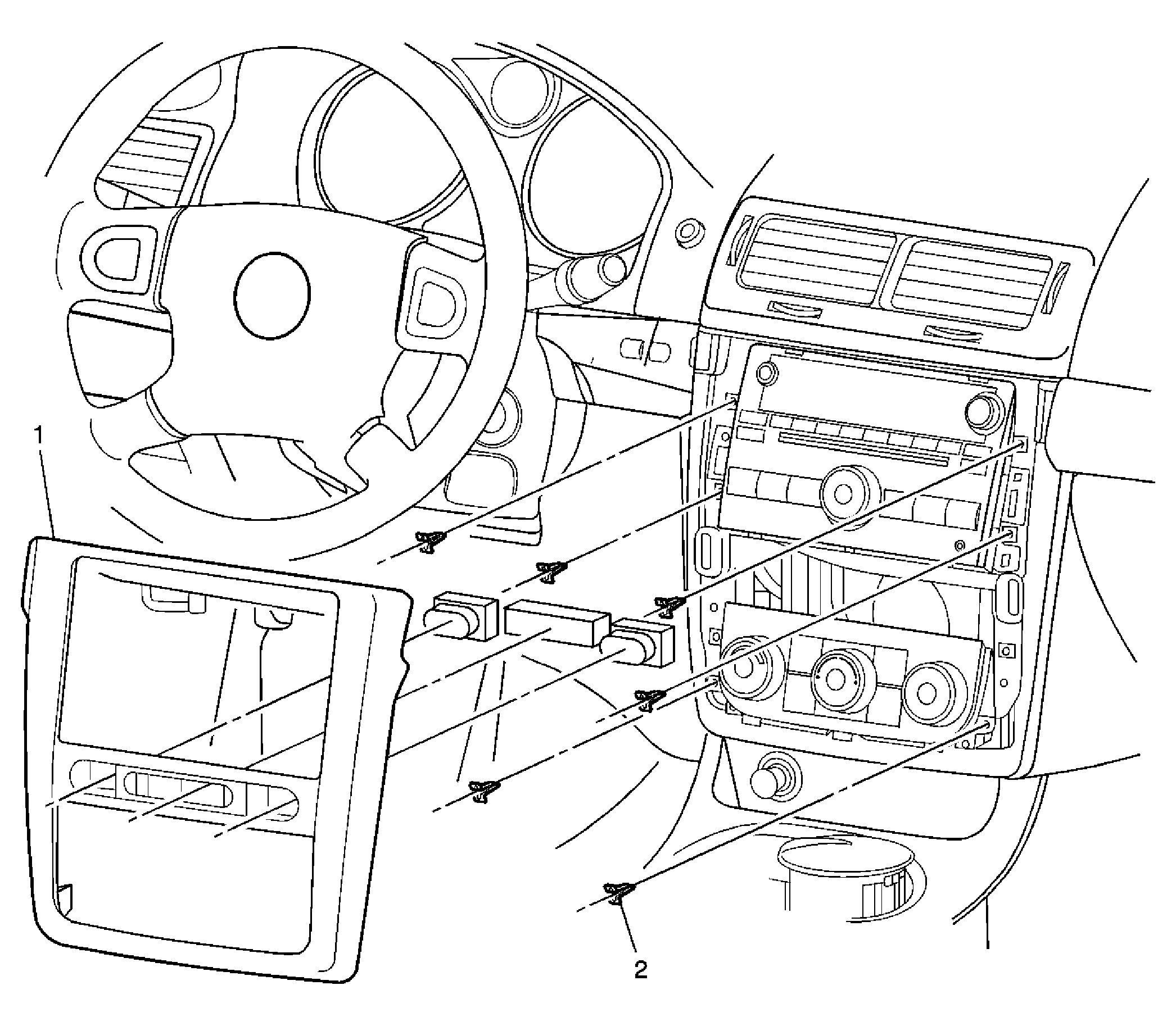

Fig 1: View Of Instrument Panel Center Trim Plate Assembly

GM1539467

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel trim plate - right side. Refer to Instrument Panel Trim Panel Replacement - Right Side .
Remove the instrument panel trim panel - center. Refer to Instrument Panel Center Trim Plate Replacement .

1

Instrument Panel Trim Plate Assembly

Procedures

Pull out on the trim panel in order to release the retaining fasteners.
Disconnect the electrical connectors.

2

Instrument Panel Trim Plate Clip
