Instrument Panel Center Trim Plate Replacement

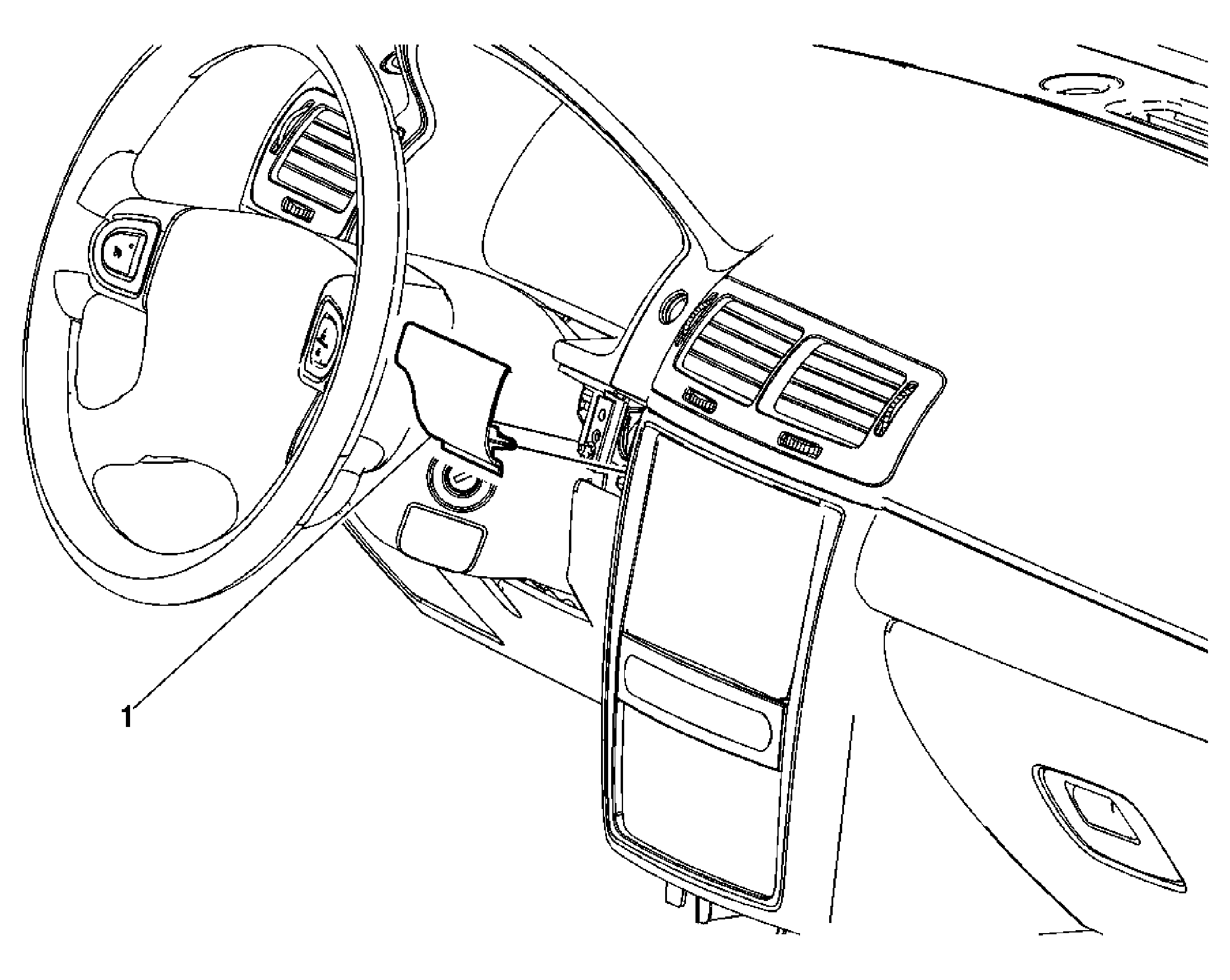

Fig 1: View Of Instrument Panel Center Trim Plate
GM2047795Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Center Trim Plate

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainers securing the instrument panel center trim plate to the instrument panel assembly.
  2. Disconnect electrical connections.
  3. When replacing the instrument panel center trim panel, transfer all necessary parts.
