Front Fender Replacement

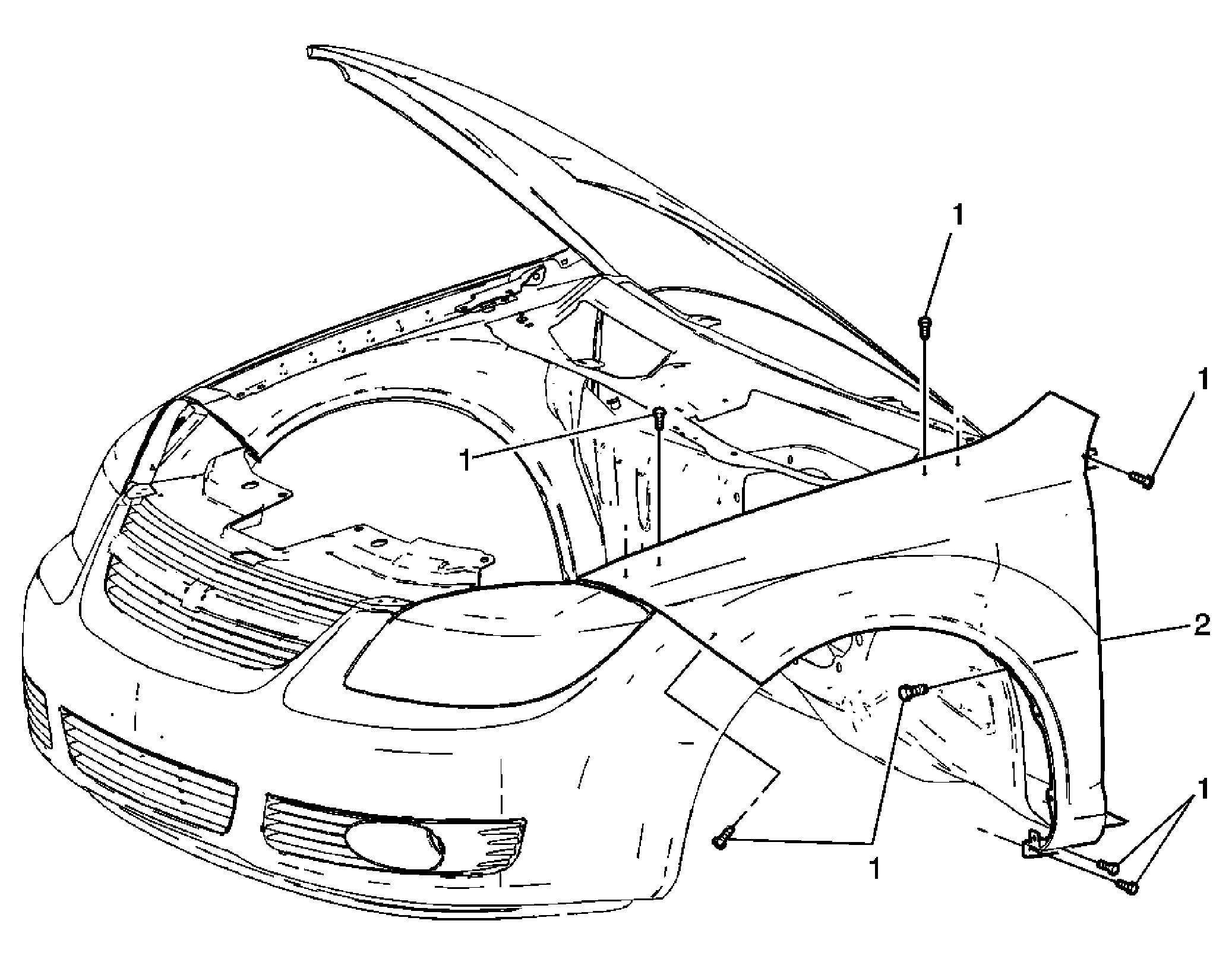

Fig 1: View Of Front Fender & Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the front fender liner. Refer to Front Fender Liner Replacement .
1	Front Fender Bolts (Qty: 7) NOTE: Refer to Fastener Notice . Tip: Apply tape along the door and the fascia edge to protect the paint. Tighten: 10 N.m (89 lb in)
2	Front Fender

Callout

Component Name

Preliminary Procedures

Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the front fender liner. Refer to Front Fender Liner Replacement .

Front Fender Bolts (Qty: 7)

NOTE: Refer to Fastener Notice .

Tip: Apply tape along the door and the fascia edge to protect the paint.

Tighten: 10 N.m (89 lb in)

Front Fender
