Front Fender Liner Replacement

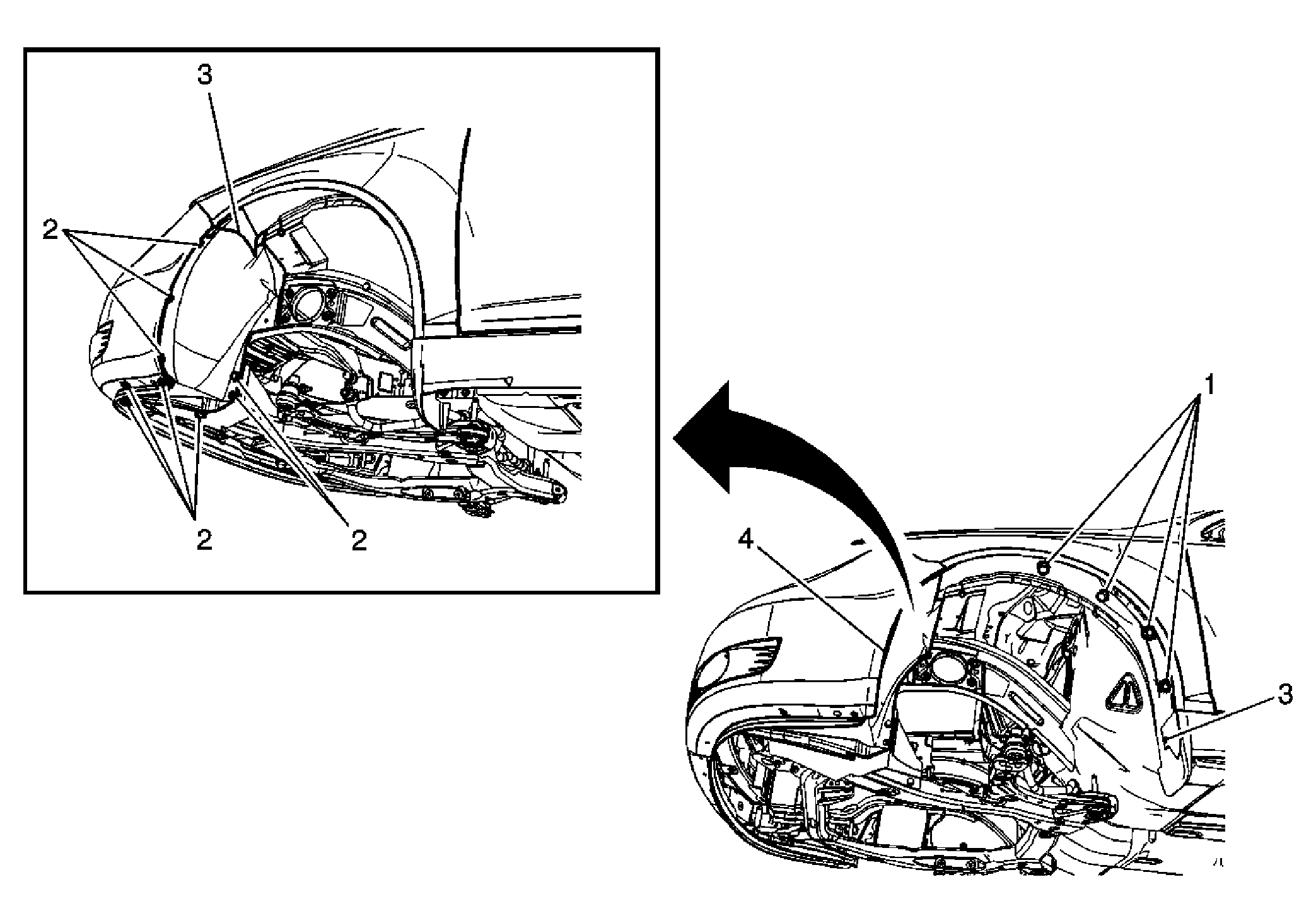

Fig 1: Replacing Front Fender Liner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Lift and support vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Front Wheelhouse Liner Screw (Qty: 7) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Wheelhouse Liner Retainer (Qty: 10) Tip: Use a flat-bladed tool to remove the wheelhouse retainers.
3	Front Fender Liner
