Rear Side Door Window Channel Replacement
Courtesy of GENERAL MOTORS CORP. Rear Side Door Window Channel Replacement
| Callout |
Component Name |
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure
- Lower rear door window.
- Remove rear door trim panel. Refer to Rear Side Door Trim Panel Replacement
.
- Remove inner belt seal. Refer to Rear Door Window Belt Inner Sealing Strip Replacement .
|

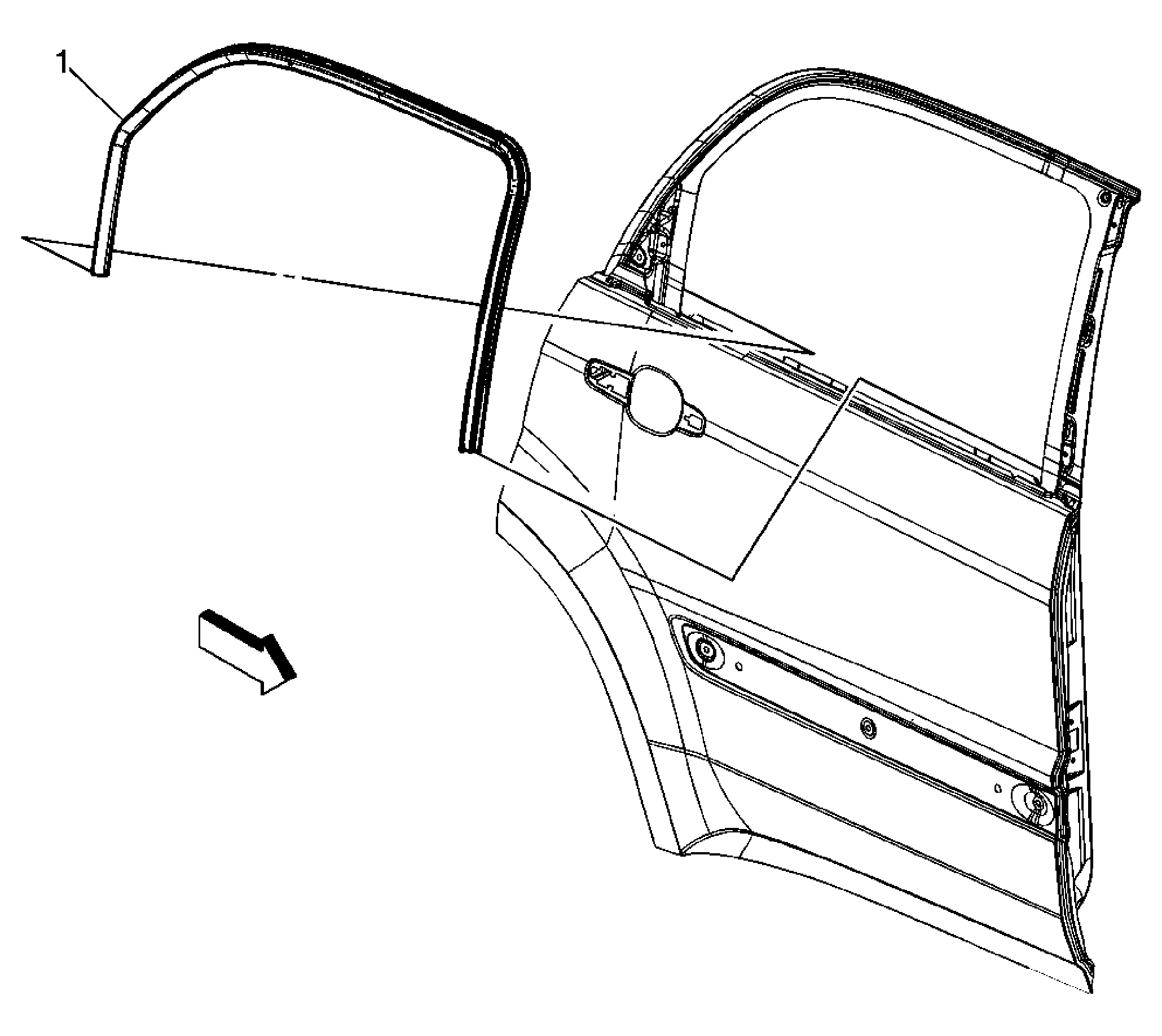

| 1 |
Rear Side Door Window Upper Reveal Molding Assembly
Tip:
- Align notch in window weatherstrip seal to fixed window post and press weatherstrip onto window flange.
- Ensure channel is fully secured into the upper corners of door frame.
|
Courtesy of GENERAL MOTORS CORP. Rear Side Door Window Channel Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Remove rear door window. Refer to Rear Side Door Window Replacement .
- Remove rear door weatherstrip run channel. Refer to Rear Side Door Window Channel Replacement .
- Remove rear door applique. Refer to Rear Door Frame Applique Replacement
.
|
| 1 |
Rear Side Door Window Channel Bolt (Qty: 5)
Tighten:
8 N.m (71 lb in)
|
| 2 |
Rear Side Door Window Channel Assembly
Tip:
- Starting from the rear corner of the door, remove seal from door header flange.
- When re-installing, start from the rear corner.
|
