Wiring Harness Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Wiring Harness To Valve Body Components
    GM801799Courtesy of GENERAL MOTORS CORP.
  1. Using a small screwdriver pry the wiring harness (55) off of the following components:
    • Pressure Control Solenoid (357)
    • TCC PWM Solenoid (352)
    • 1-2 Shift Solenoid (368)
    • 2-3 Shift Solenoid (369)
    • 4-5 Shift Solenoid (376)
    • Manual Shift Shaft Switch (602)
    • Input Speed Sensor (44)
    • Output Speed Sensor (42)
    2. Fig 2: Identifying Wiring Harness Connector & Retainer
    GM801801Courtesy of GENERAL MOTORS CORP.
  2. Remove the connector retainer (54) from the case (24).

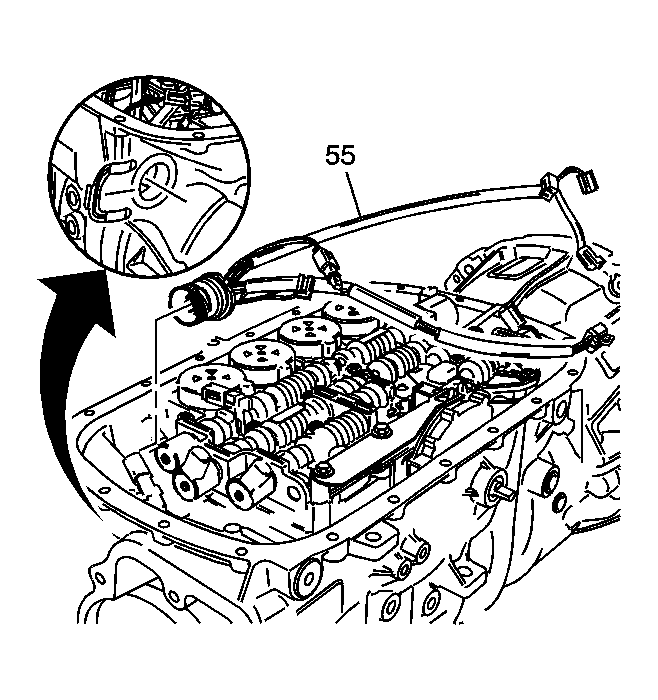

    3. Fig 3: Removing Wiring Harness
    GM801802Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiring harness (55) from the case (24).
