Transmission Fluid Draining

WARNING: This page is about a different variant/trim than selected.

Tools Required

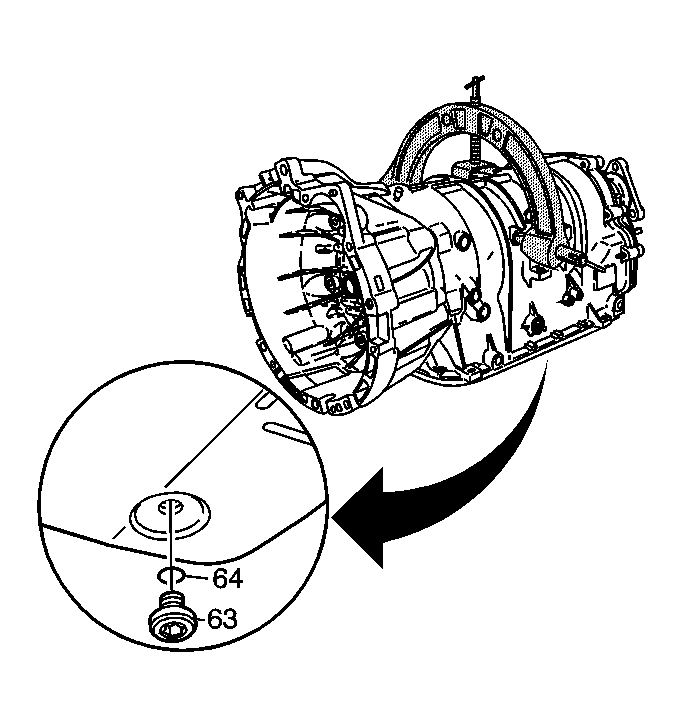

    Fig 1: Locating Fluid Pan Drain Plug & Seal
    GM816705Courtesy of GENERAL MOTORS CORP.
  1. Remove the fluid pan drain plug (63) and seal (64), and allow the transmission fluid to drain.
    2. Fig 2: Prop Shaft Flange
    GM1700073Courtesy of GENERAL MOTORS CORP.
  2. Put transmission in park.
  3. Install either the J 45012  - CTS or J 8614-01  - solstice, to hold the prop shaft flange (31) - model dependent.
    4. IMPORTANT: Discard retainer (30), seal (32), washer (33) and nut (34).
  4. Remove the prop shaft flange nut (34).
  5. Remove the prop shaft flange washer (33) and seal (32).
  6. Remove the prop shaft flange (31) and the output shaft assembly retainer (30).
  7. Slowly rotate the transmission to a vertical position, with the bell housing facing up, and allow any excess fluid to drain.
