Torque Converter Seal Removal

WARNING: This page is about a different variant/trim than selected.

Tools Required

J 45000  Seal Remover. See Special Tools .

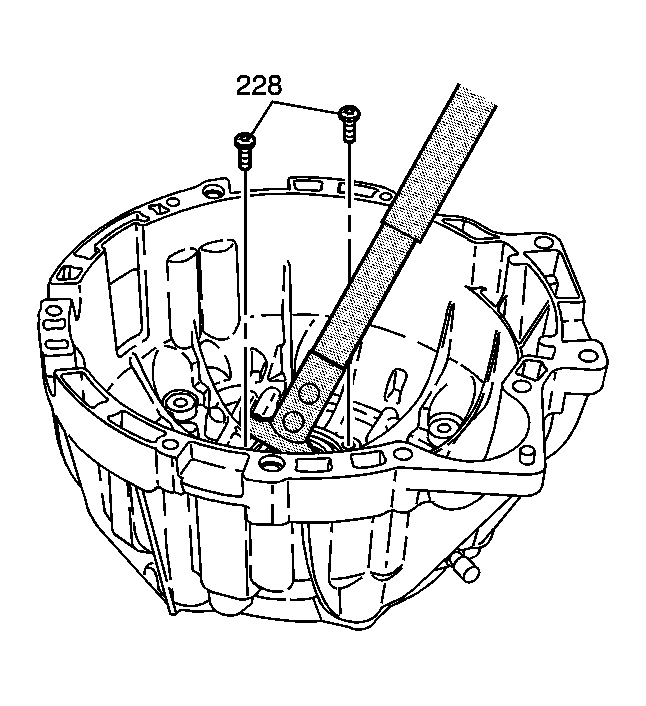

    Fig 1: Identifying Torque Converter Seal Retaining Bolts
    GM801911Courtesy of GENERAL MOTORS CORP.
  1. Remove the two bolts (228).
  2. Remove the torque converter seal using J 45000  . See Special Tools .
