Low Clutch Sprag Assemble

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Checking Low Clutch Sprag Rotation
    GM801858Courtesy of GENERAL MOTORS CORP.
  1. Inspect the low clutch sprag for the following:
    • Worn or damaged splines
    • Scoring on the inside diameter of the races
    • Wear or cracks
  2. Check that the low clutch sprag rotation freewheels and locks up in the correct direction.

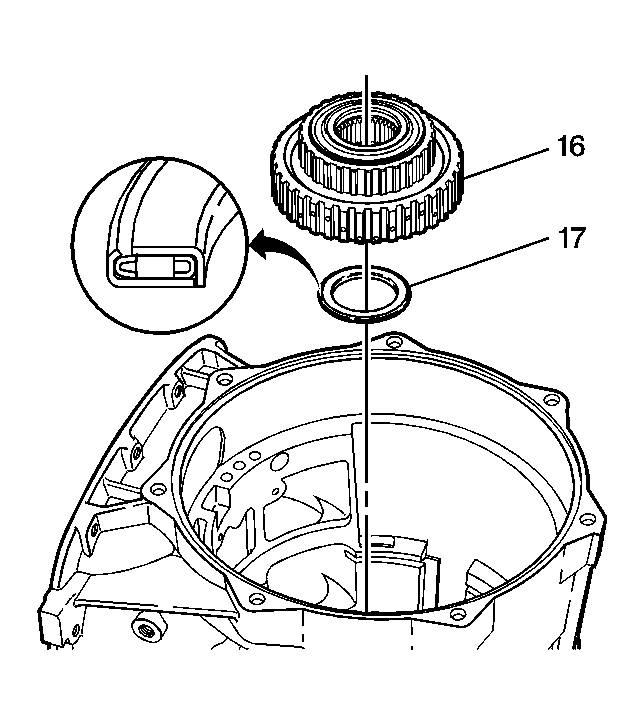

    3. Fig 2: Locating Low Clutch Roller Thrust Bearing & Sprag
    GM801815Courtesy of GENERAL MOTORS CORP.
  3. Install the low clutch roller thrust bearing (17).
  4. Install the low clutch sprag (16) into the case (24).
