Direct and Reverse Clutch Disassemble

Tools Required

• J 38734  Intermediate Spring Compressor Adapter. See Special Tools .
• J 45139  Compressor Plate. See Special Tools .

Fig 1: View Of Reverse Clutch Components
Courtesy of GENERAL MOTORS CORP.
1. Remove the reverse clutch backing plate retainer (420).
2. Remove the backing plate (419).
3. Remove the clutch plates (418, 417). Refer to Clutch Plate Selection Specifications .
4. Remove the apply plate (416).
5. Remove the reverse clutch spacer (415).
Fig 2: Locating Direct Clutch Plates
Courtesy of GENERAL MOTORS CORP.
6. Remove the direct clutch backing plate retainer ring (414).
7. Remove the backing plate (413).
8. Remove the clutch plates (412, 411). Refer to Clutch Plate Selection Specifications .
9. Remove the apply plate (410).
Fig 3: Identifying Direct And Reverse Clutch Spring Retainer Ring
Courtesy of GENERAL MOTORS CORP.
10. Use J 38734  and J 45139  to compress the direct and reverse piston spring (407). See Special Tools .
11. Remove the direct and reverse clutch spring retainer ring (409).
12. Remove J 38734  and J 45139  . See Special Tools .
Fig 4: View Of Piston Spring & Retainer
Courtesy of GENERAL MOTORS CORP.
13. Remove the spring retainer (408).
14. Remove the spring (407).

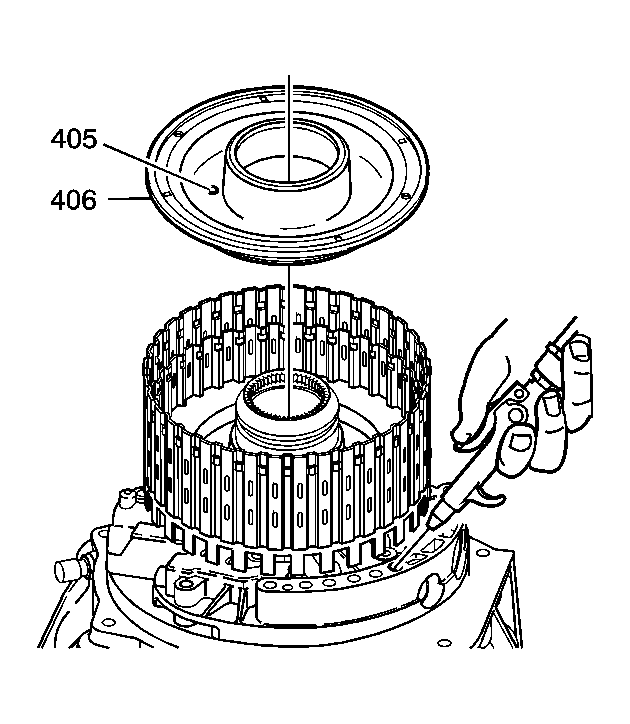

Fig 5: Locating Direct Clutch Piston
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: It may be necessary to use air pressure to remove the piston.
15. Remove the direct clutch piston (406).
Fig 6: Identifying Reverse Clutch Piston & Seal
Courtesy of GENERAL MOTORS CORP.
16. Remove the reverse clutch piston (404).
17. Remove the reverse clutch piston inner seal (402).
