Door Water Deflector Replacement

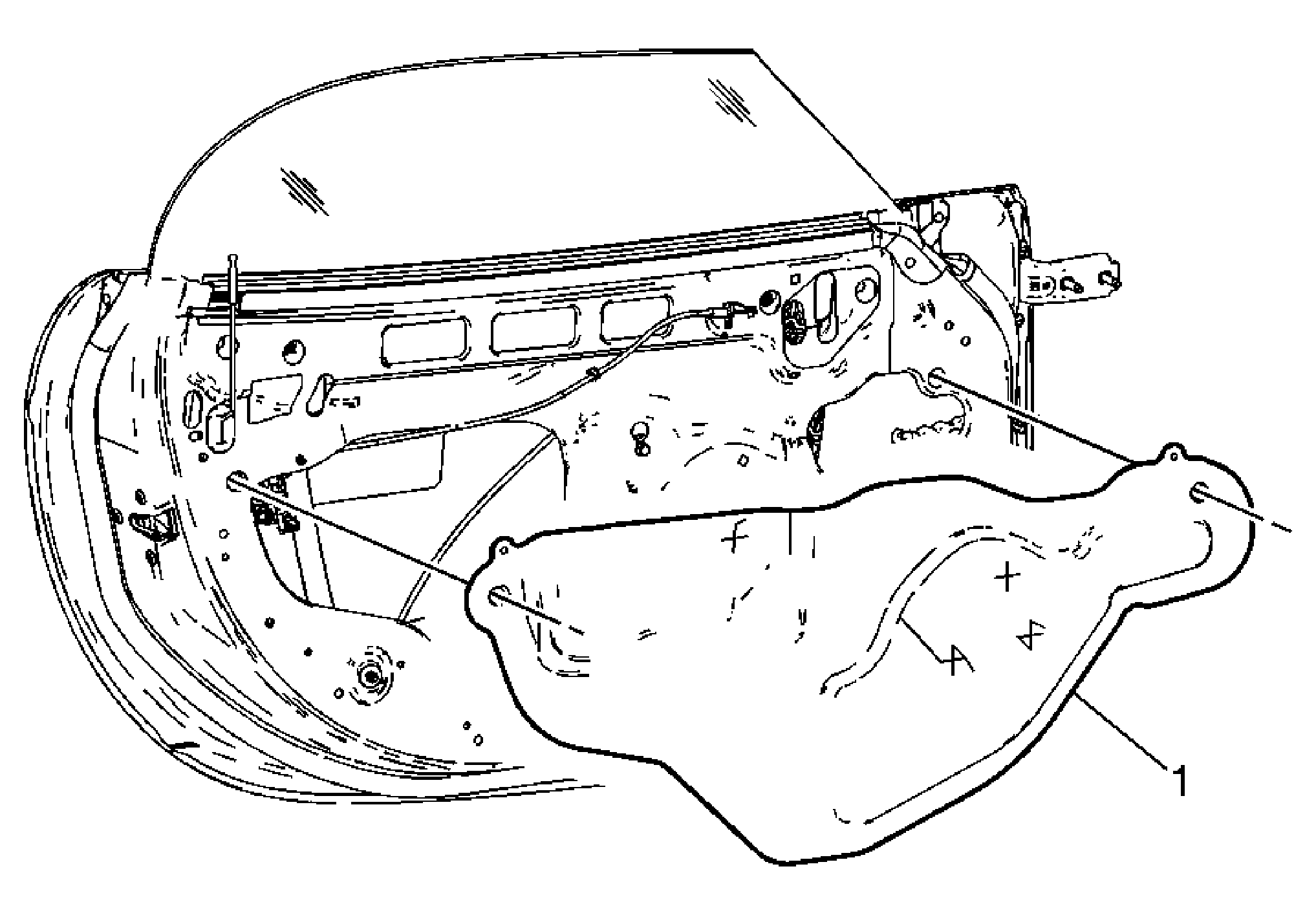

Fig 1: Door Water Deflector
GM1581319Courtesy of GENERAL MOTORS CORP.
Door Water Deflector Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the interior trim panel. Refer to Door Trim Panel Replacement .
1 Deflector, Door Water
Tip:  Pull the water deflector away from the door while guiding the handle cable and wiring through it.
