Door Trim Panel Replacement

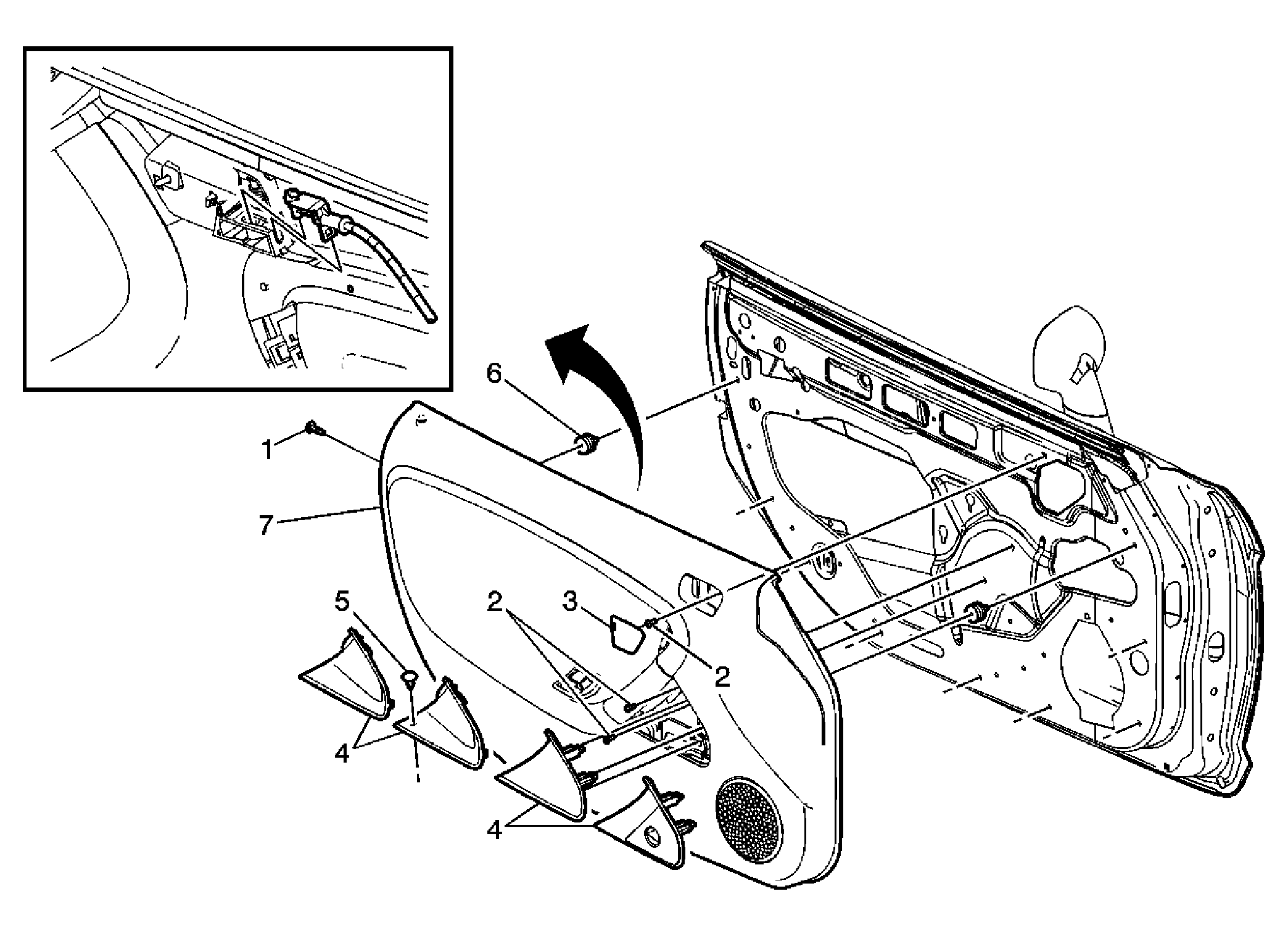

Fig 1: Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: If equipped, remove window handle. Refer to Door Window Regulator Handle Replacement .
1	If equipped, Front Side Door Trim Panel Screw (Qty: 1) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice .
2	Front Side Door Trim Panel Screw (Qty: 3) Tighten: 2 N.m (18 lb in)
3	Front Inside Door Handle Bezel Plug
4	Front Side Door Trim Panel Cover Assembly Tip: Several design variations exist, see illustration. Cover may come with double sided tape to help secure it to door panel in addition to the snap fit. Tape should be inspected and replaced.
5	Front Side Door Trim Panel Cover Plastic Tree Retainer
6	Front Side Door Trim Retainer (Qty: 9)
7	Front Side Door Trim Panel Assembly Tip: Use a J 38778 Door Trim Clip Remover to aid in the removal of the door trim panel. Pull up on the front side door lock retainer to disengage the cable. Disconnect electrical connector.
