Trim Plate Replacement - Console Front
Trim Plate Replacement - Console Front

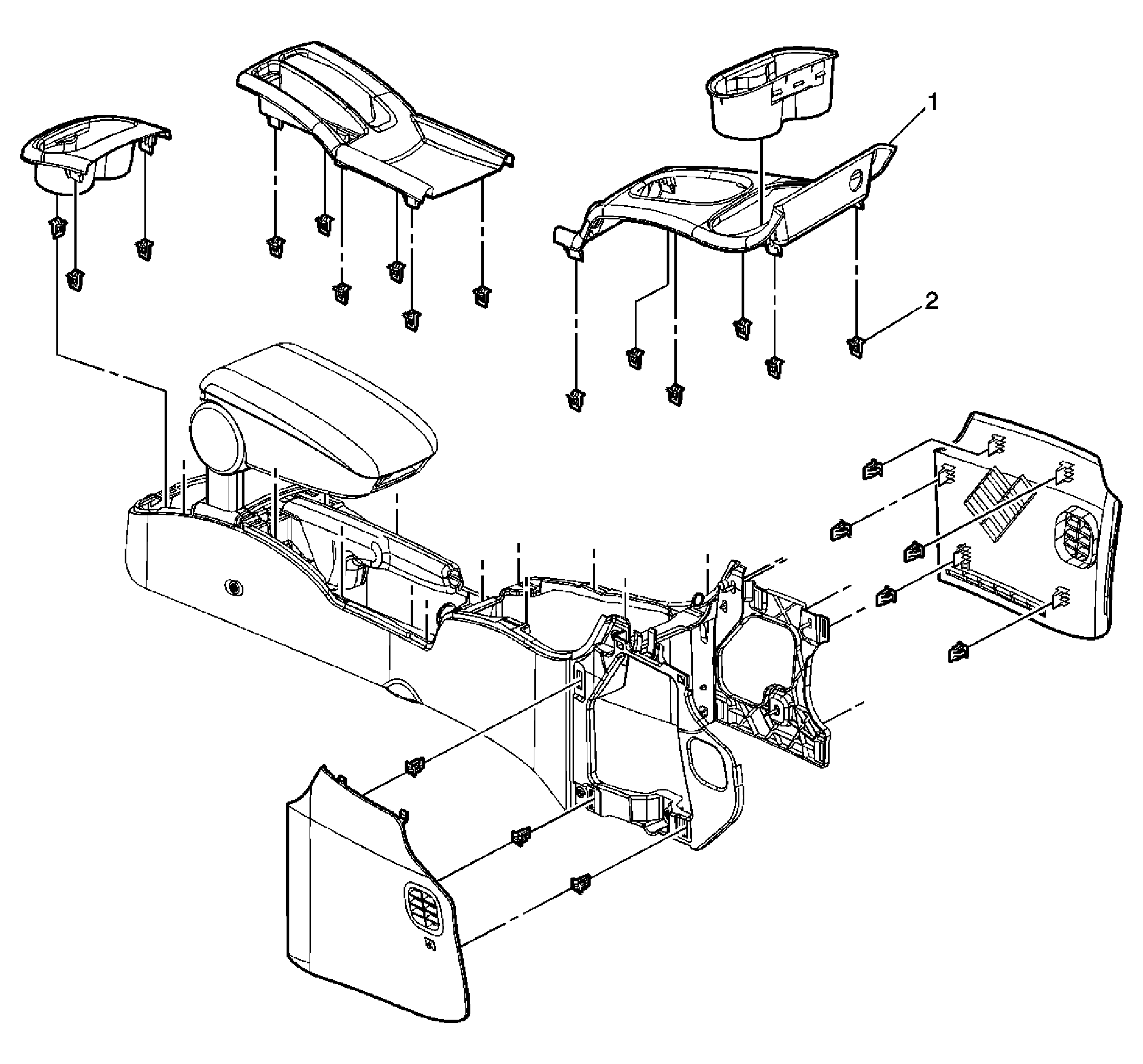

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the console rear trim. Refer to Trim Plate Replacement - Console Rear . |
|
| 1 | Plate Assembly, Floor Console Transmission Shifter Opening Tip: Disconnect the electrical connectors. |
| 2 | Clip, Trim Plate |
