Trim Plate Replacement - Console Rear

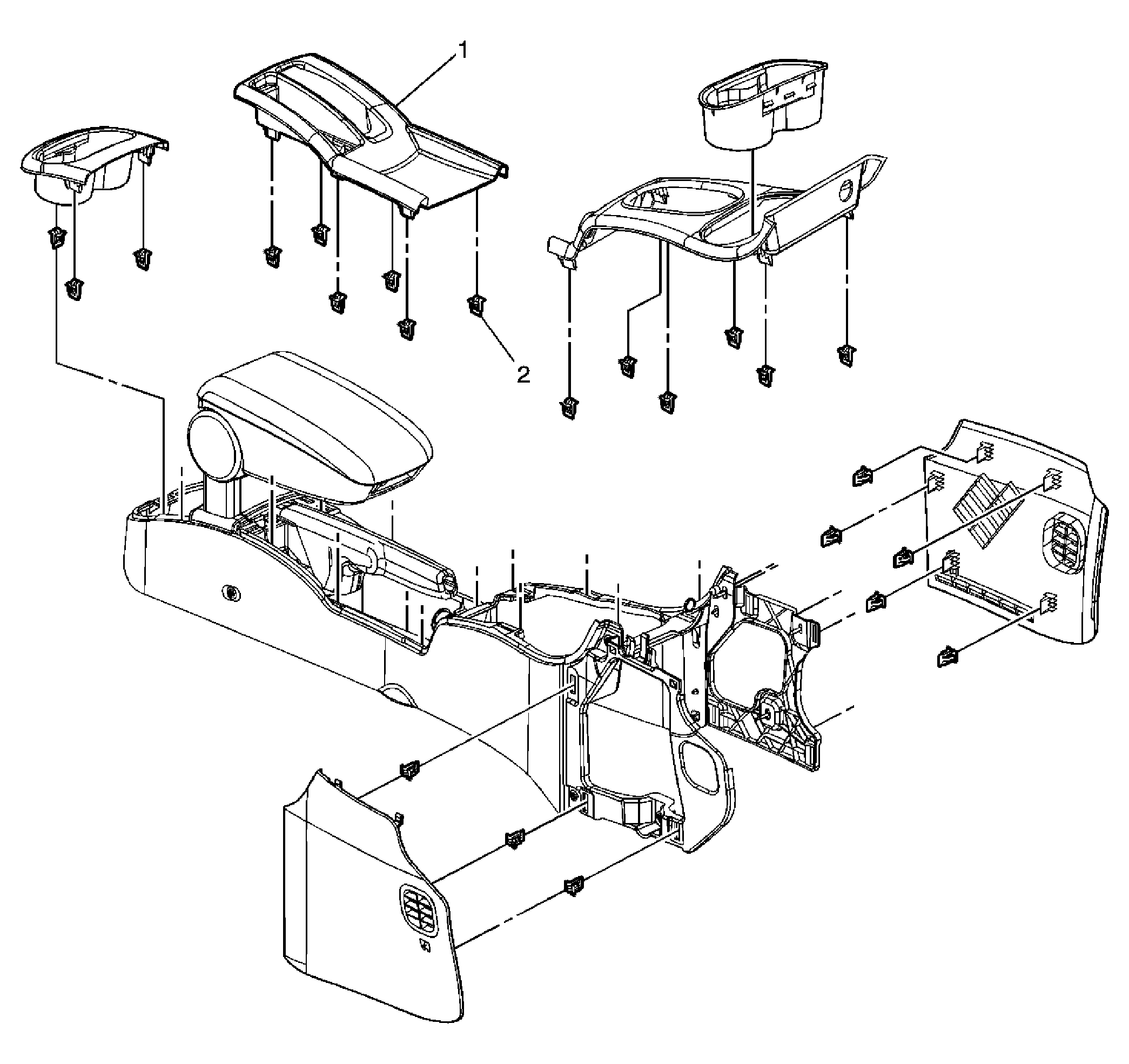

Fig 1: Trim Plate Replacement - Console Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Plate Assembly, Floor Console Park Brake Opening Tip: Pull the park brake lever up to allow clearance. Lift up to release the park brake lever opening trim plate retaining clips.
2	Clip, Cupholder
