Installation Procedure

  1. Install the hazard switch. Refer to Hazard Warning Switch Replacement in Lighting Systems.

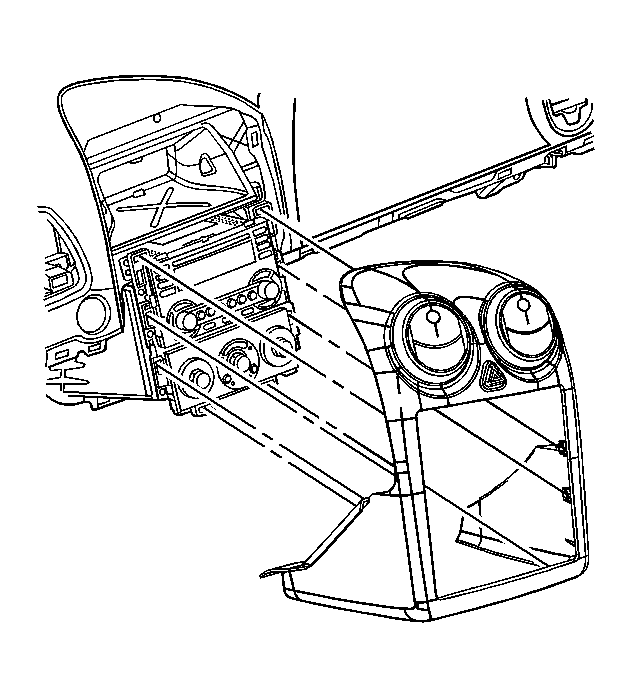

    2. Fig 1: View Of Instrument Panel Center Trim Bezel
    GM1475349Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P center trim bezel.
  3. Install the knee bolster. Refer to Knee Bolster Replacement .
  4. Install the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) .
  5. Shift into park.
  6. Release parking brake.
