Knee Bolster Replacement

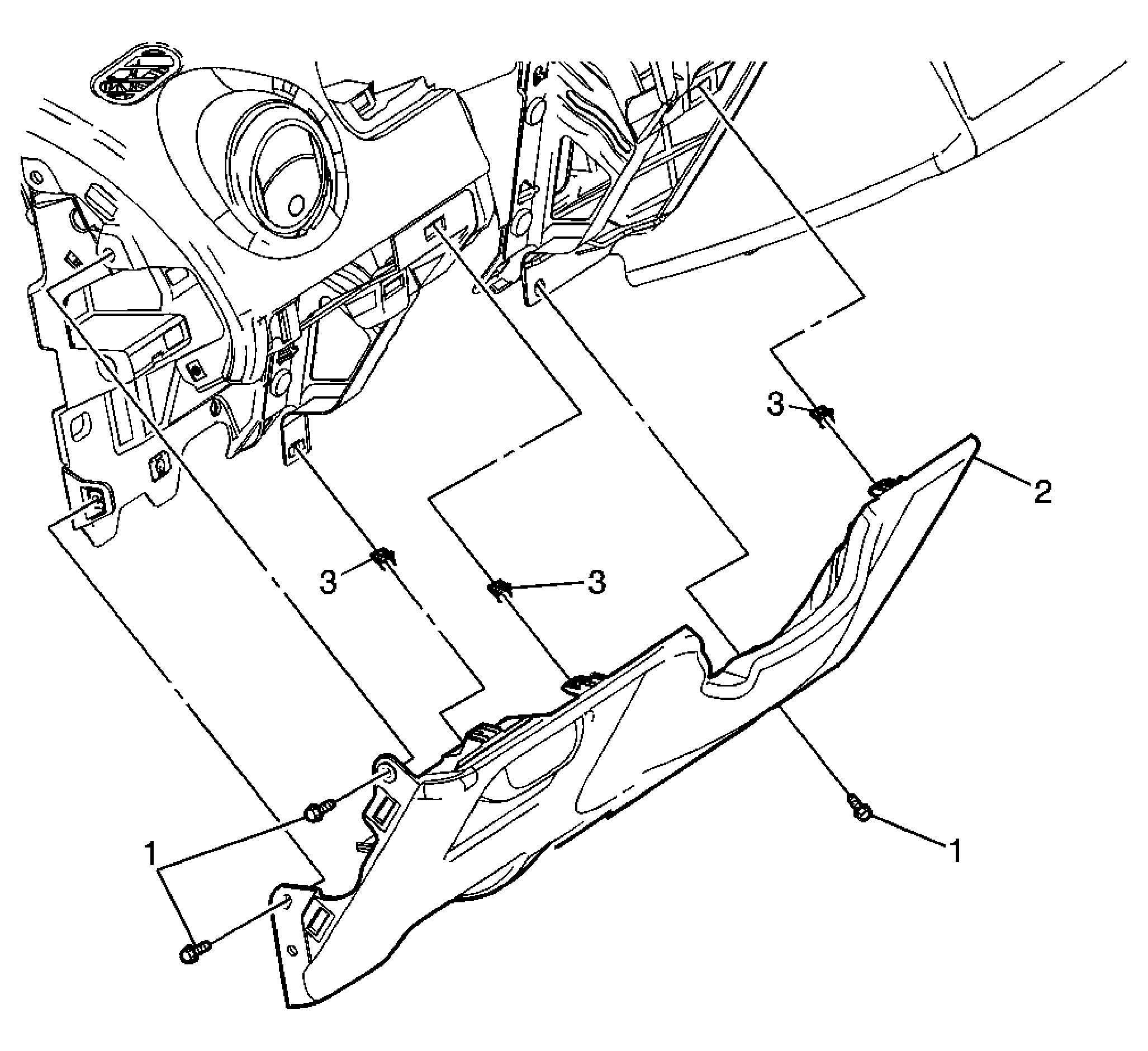

Fig 1: View Of Knee Bolster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the instrument panel left outer trim panel. Refer to Instrument Panel (I/P) Outer Trim Cover Replacement . Remove the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left . Remove the data link connector.
1	Screws, Knee Bolster (Qty: 3) Tighten: 2 N.m (18 lb in)
2	Knee Bolster Assembly
3	Retaining Clip, Knee Bolster (Qty: 3)
