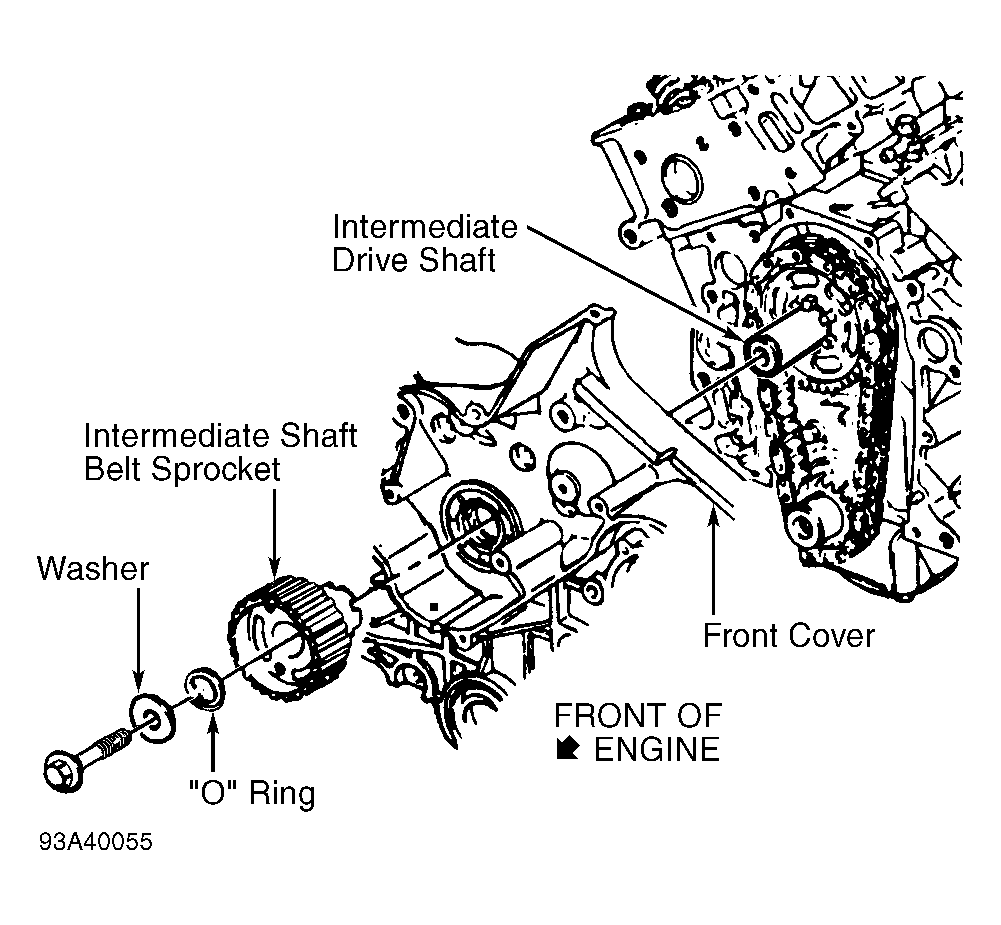

Intermediate Shaft Belt Sprocket: Installation
- Lubricate surface of NEW oil seal where it contacts intermediate shaft sprocket. Using Seal Installer (J-38619), install NEW oil seal. Install belt sprocket, ensuring locating tangs on belt sprocket engage mating sockets in chain sprocket. To verify engagement of tangs in slots, measure distance between front face of belt sprocket and front cover. If distance exceeds 1.65" (42 mm), tangs are not engaged.
- Ensure camshafts are properly aligned. See TIMING BELT & CAMSHAFT TIMING PROCEDURE . Lightly lubricate shaft seal "O" ring, and place it into end of intermediate shaft. Lightly lubricate sprocket bolt threads and washer (DO NOT over-lubricate). Tighten bolt to specification. Refer to TORQUE SPECIFICATIONS . To complete installation, reverse removal procedures.
Courtesy of GENERAL MOTORS CORP.
