Removal and Installation: Removal

  1. Remove the cup holder finisher. Refer to Exploded View .

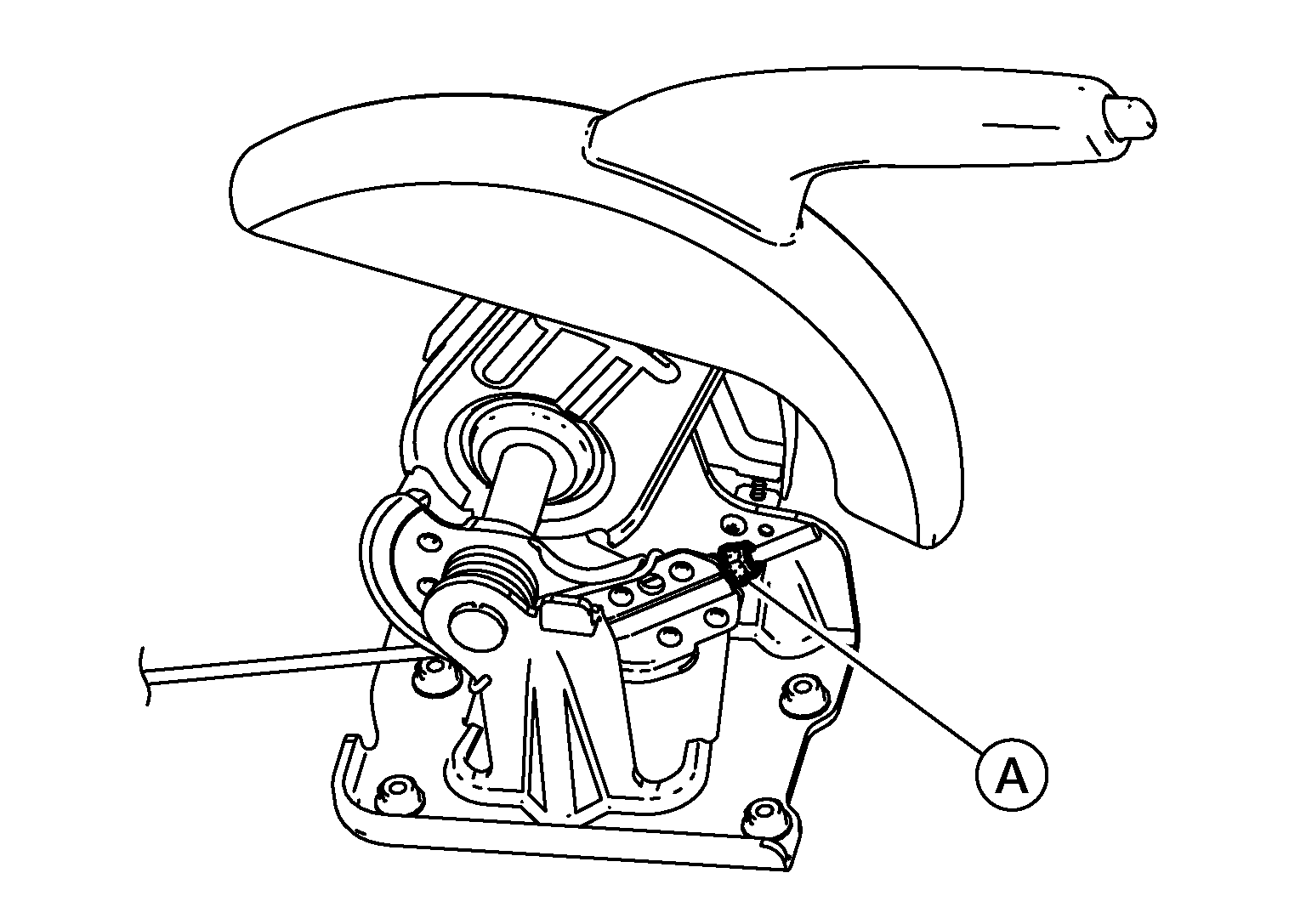

  2. Loosen the adjusting nut (A).
    GNSAWFIA0156Z-156Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse the adjusting nut if the nut is removed.
    NOTE: It is not necessary to remove the front parking brake cable from the parking brake lever assembly.
  3. Pull the equalizer (A) in the rearward direction and then in the upward direction in order to separate the rear parking brake cables [LH/RH (2)] from the front parking brake cable (1).
    GNSJPFIB0129Z-129Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: To prevent damage to parts, do not bend the parking brake cables.
  4. Remove the nuts from the parking brake lever assembly. Refer to Exploded View .
  5. Disconnect the harness connector from the parking brake switch.
  6. Remove the parking brake lever assembly.
