Exploded View

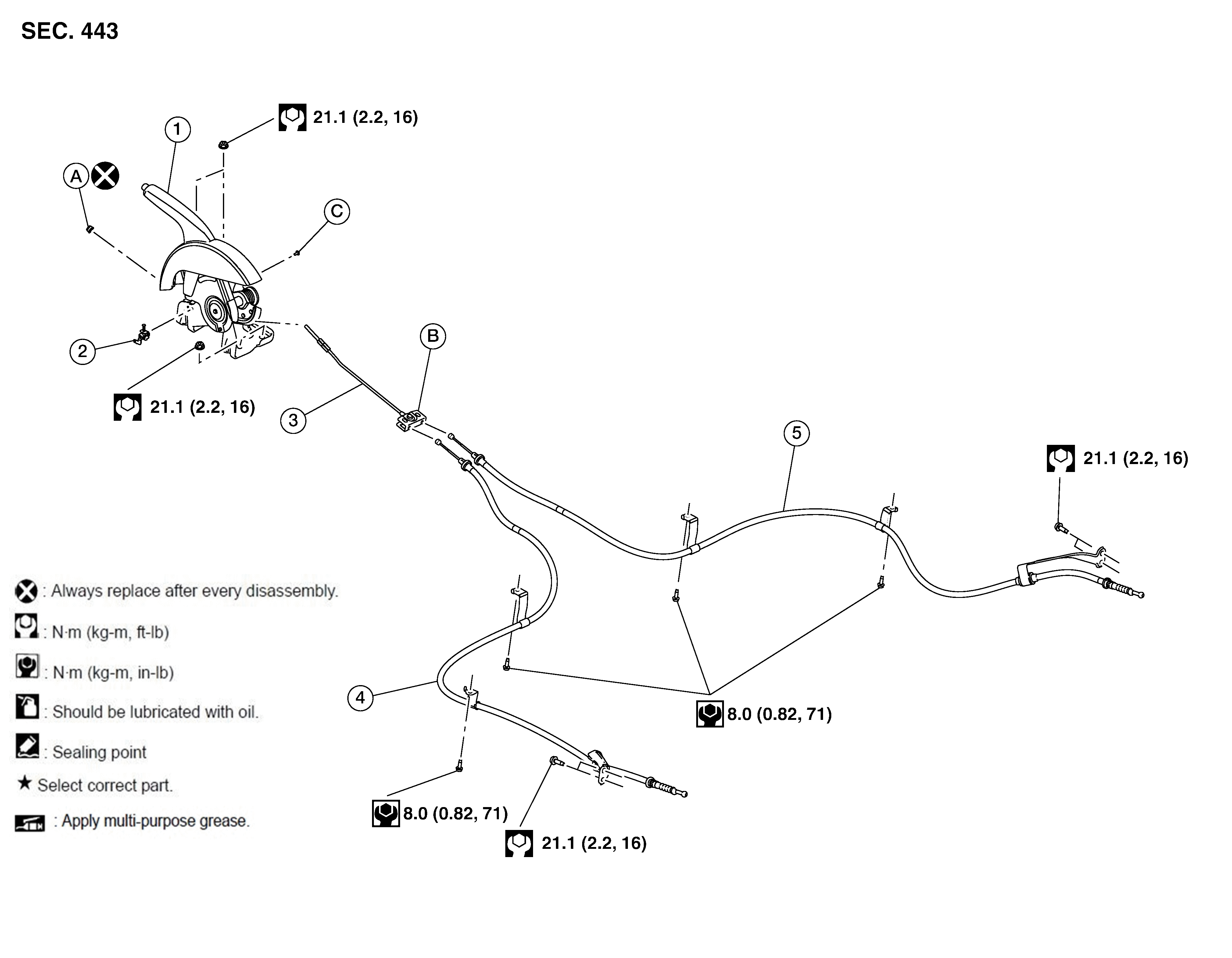

Fig 1: Parking Brake Control Components With Torque Specifications
GNSALFIA0221Z-221Courtesy of NISSAN NORTH AMERICA, INC.

1.

Parking brake lever assembly

2.

Parking brake switch

3.

Front parking brake cable

4.

Rear parking brake cable (LH)

5.

Rear parking brake cable (RH)

A.

Adjusting nut

B.

Equalizer

C.

Screw
