Removal and Installation: Removal

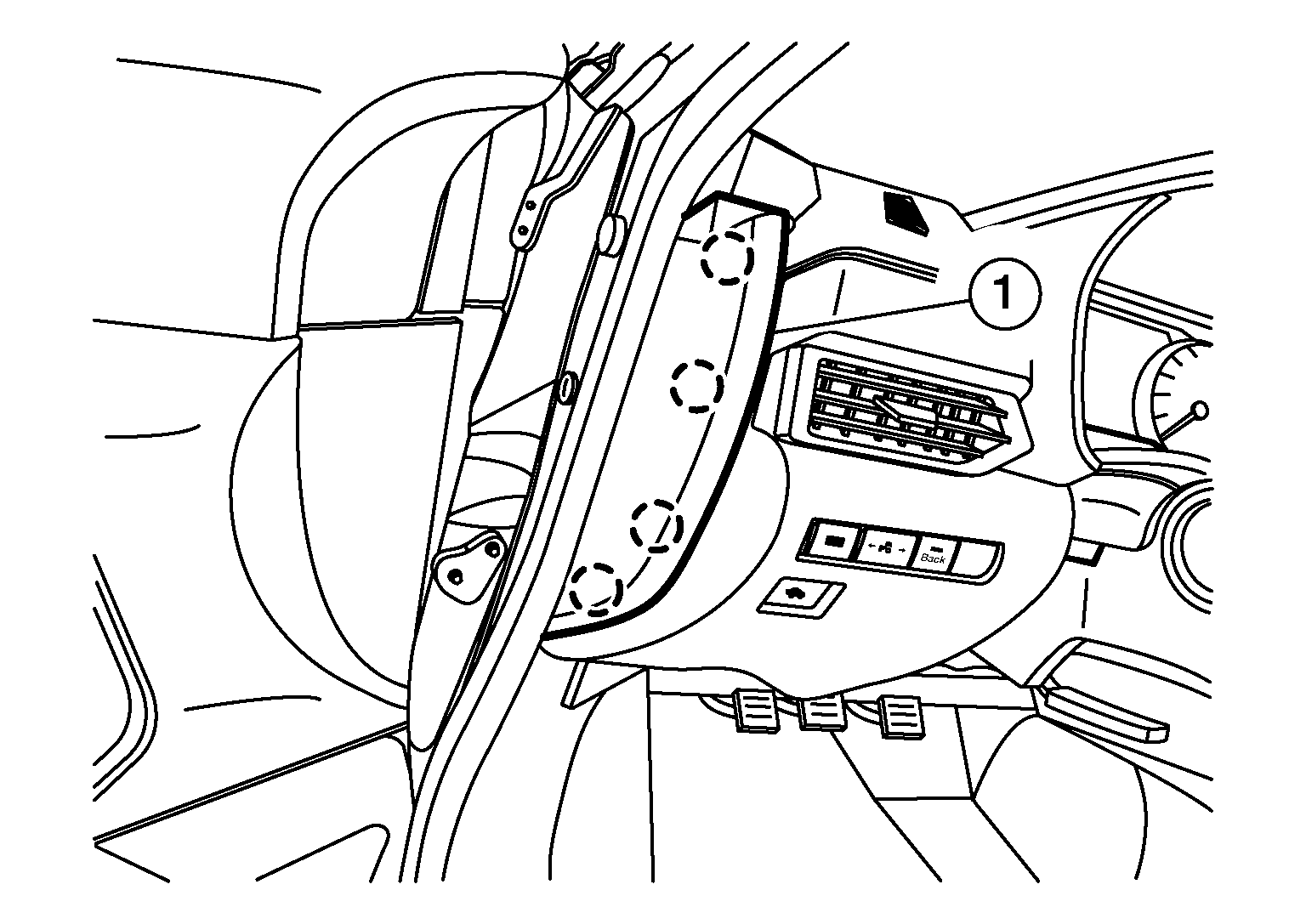

  1. Using a suitable tool, release pawls and remove the instrument side finisher LH (1).
    GNSALJIA0507Z-507Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

  2. Remove the fuel filler handle assembly. Refer to Exploded View .

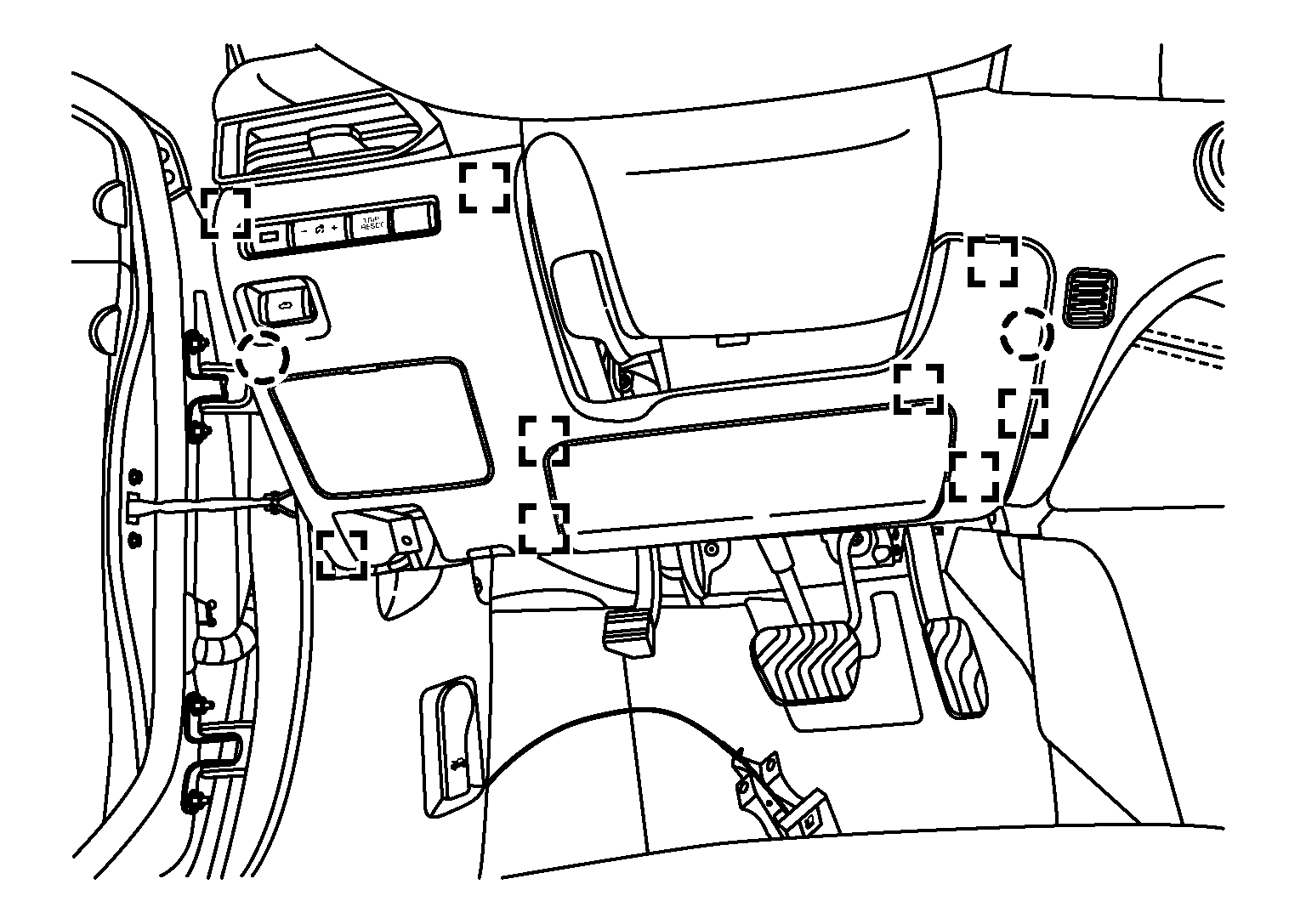

  3. Using a suitable tool, release the instrument lower panel LH clips and pawls.
    GNSALJIA0521Z-521Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

    SYMBOL : Pawl

  4. Disconnect harness connectors and remove the instrument lower panel LH.
