Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not reuse O-rings.

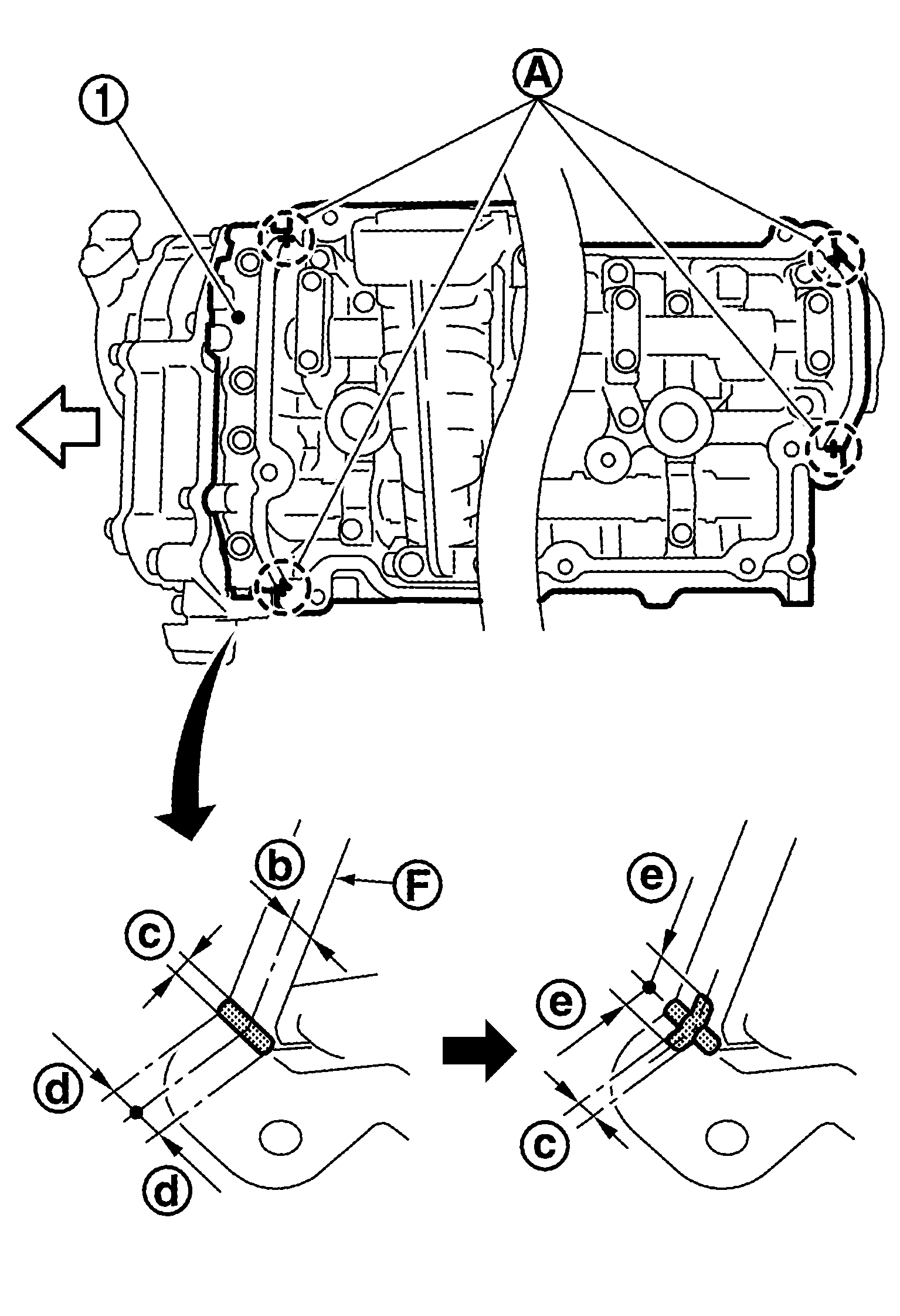

Apply liquid gasket with a suitable tool to the VVEL ladder assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.

(A)	: Liquid gasket application point
(F)	: End surface of VVEL ladder assembly
(b)	: 4.0 mm (0.16 in)
(c)	: 2.5 - 3.5 mm (0.098 - 0.138 in)
(d)	: 5.0 mm (0.20 in)
(e)	: 10.0 mm (0.39 in)
	: Engine front

Use Genuine RTV silicone sealant or equivalent. Refer to Recommended Chemical Products and Sealants .

NOTE: The figure shows an example of bank 1 side.

Apply liquid gasket on the front and rear side of engine first. [5 mm (0.20 in) + 5 mm (0.20 in) side as shown in the figure]

Install rocker cover gasket to rocker cover.
Install rocker cover.
- Check that rocker cover gasket does not drop from the installation groove of rocker cover.

Tighten bolts in the sequence shown to the specified torque.

Courtesy of NISSAN NORTH AMERICA, INC.

Step 1	: 2.0 N.m (0.2 kg-m, 18 in-lb)
Step 2	: 8.3 N.m (0.85 kg-m, 73 in-lb)

Install ignition coil. Refer to Exploded View .

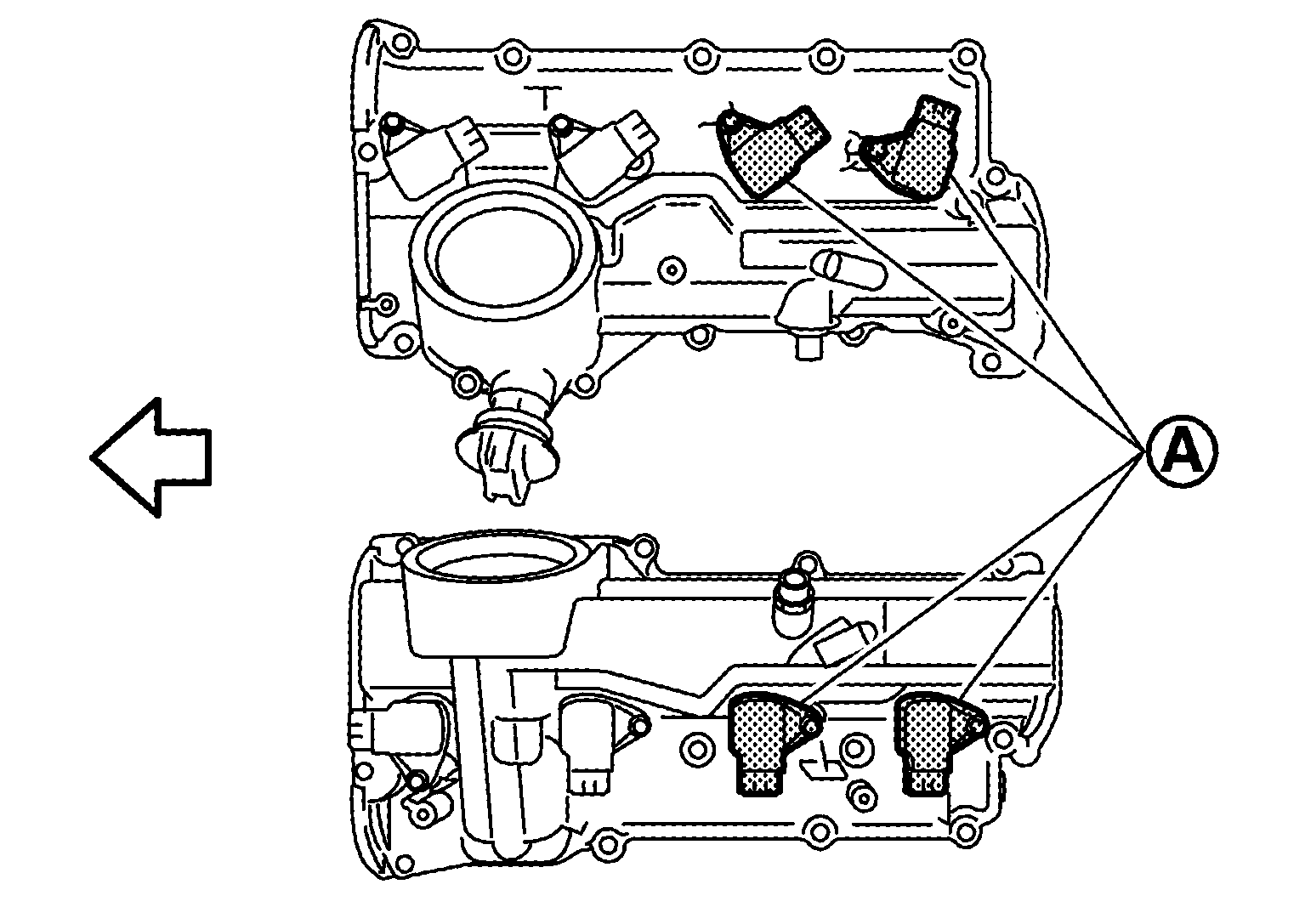

CAUTION: Install Ignition coil marked with an identification mark (A) on cylinder No. 5, 6, 7 and 8.

Courtesy of NISSAN NORTH AMERICA, INC.

: Engine front
