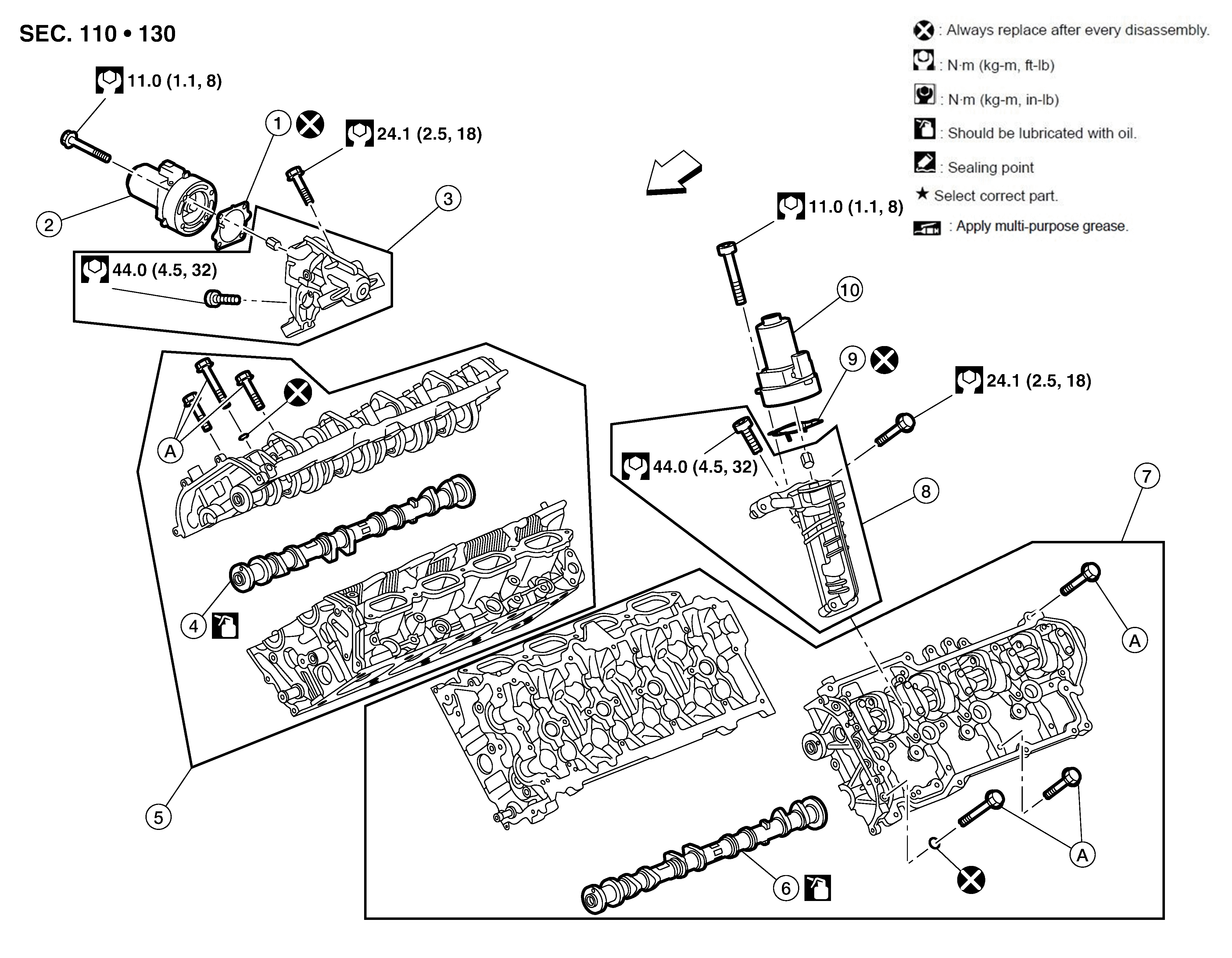

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Gasket |
2. |
VVEL actuator motor assembly |
3. |
VVEL actuator housing assembly (bank 2) |
|
4. |
Exhaust camshaft (bank 2) |
5. |
Cylinder head/VVEL ladder assembly (bank 2) |
6. |
Exhaust camshaft (bank 1) |
|
7. |
Cylinder head/VVEL ladder assembly (bank 1) |
8. |
VVEL actuator housing assembly (bank 1) |
9. |
Gasket |
|
10. |
VVEL actuator motor assembly |
A. |
Refer to INSTALLATION . |
|
Front |
