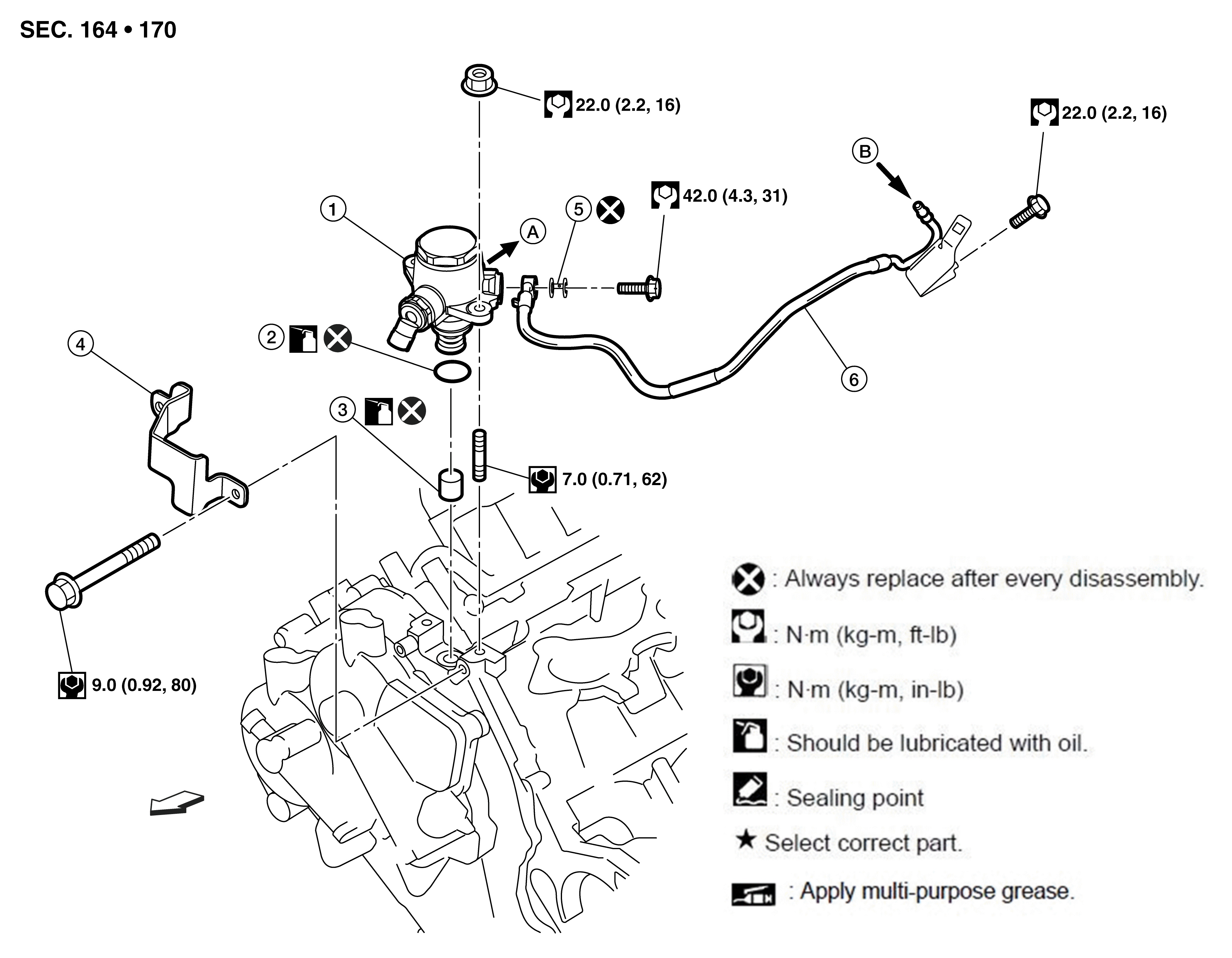

Exploded View
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not remove or disassemble parts unless instructed.
|
1. |
High pressure fuel pump |
2. |
O-ring |
3. |
Lifter |
|
4. |
Fuel pump connector protector |
5. |
Copper washer |
6. |
Fuel feed hose |
|
A. |
To fuel feed tube (pump side). Refer to Exploded View . |
B. |
From fuel tank. Refer to Removal and Installation -- VK56VD . |
|
Engine front |
