A/T Position: Adjustment

WARNING: This page is about a different variant/trim than selected.

Shift selector lever in "P" position.

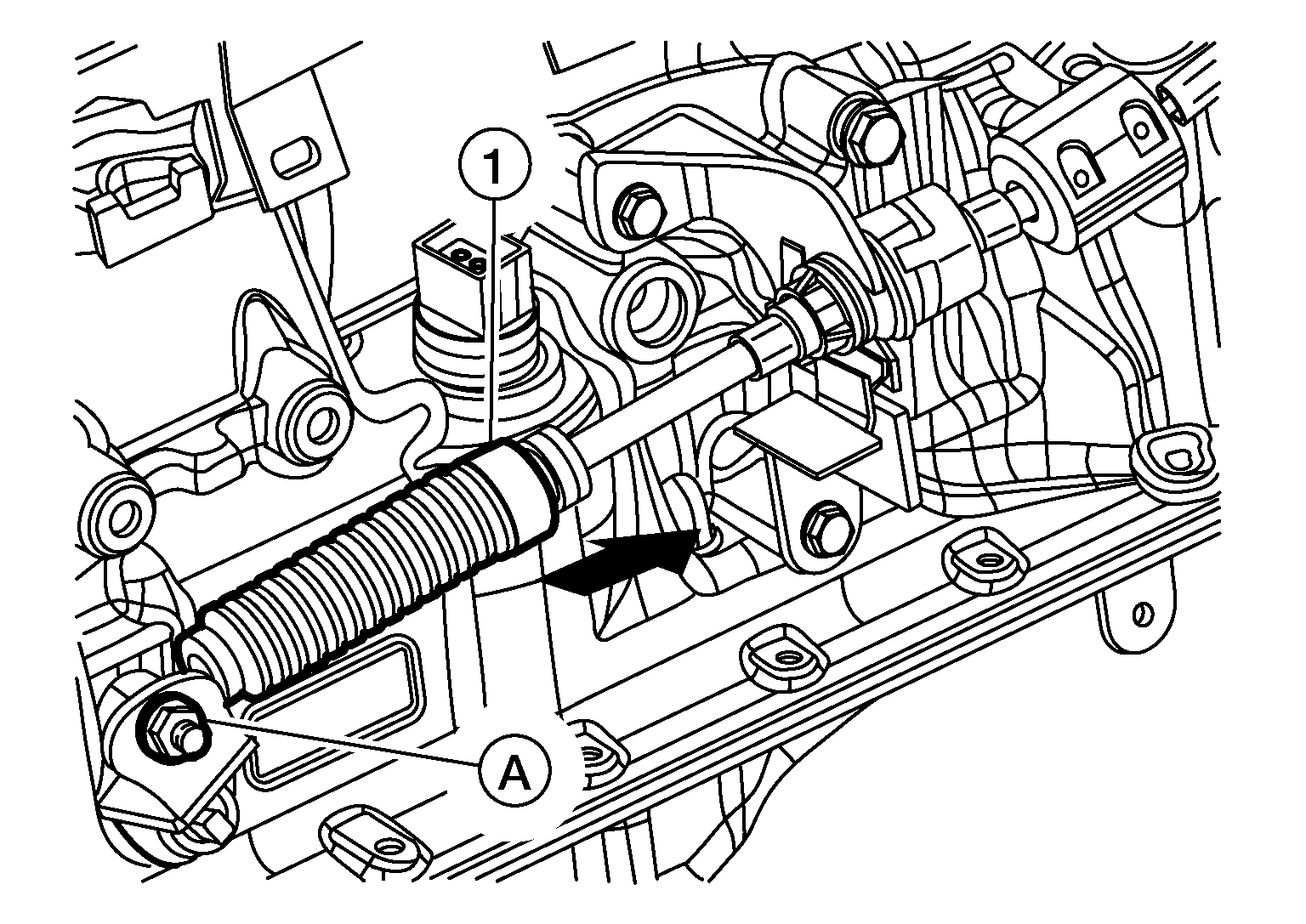

Loosen nut (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Rotate wheel and carry out park locking.
Pull control cable (1) toward the direction of arrow ( ) and release hand from cable to leave it in a natural state and then temporarily tighten nut by hand.
CAUTION: Be careful not put any load to manual lever.

NOTE: Pull control cable with a force of 9.8 N (approximately 1 kg, 2.2 lb).
Tighten nut to specified torque. Refer to Exploded View .
