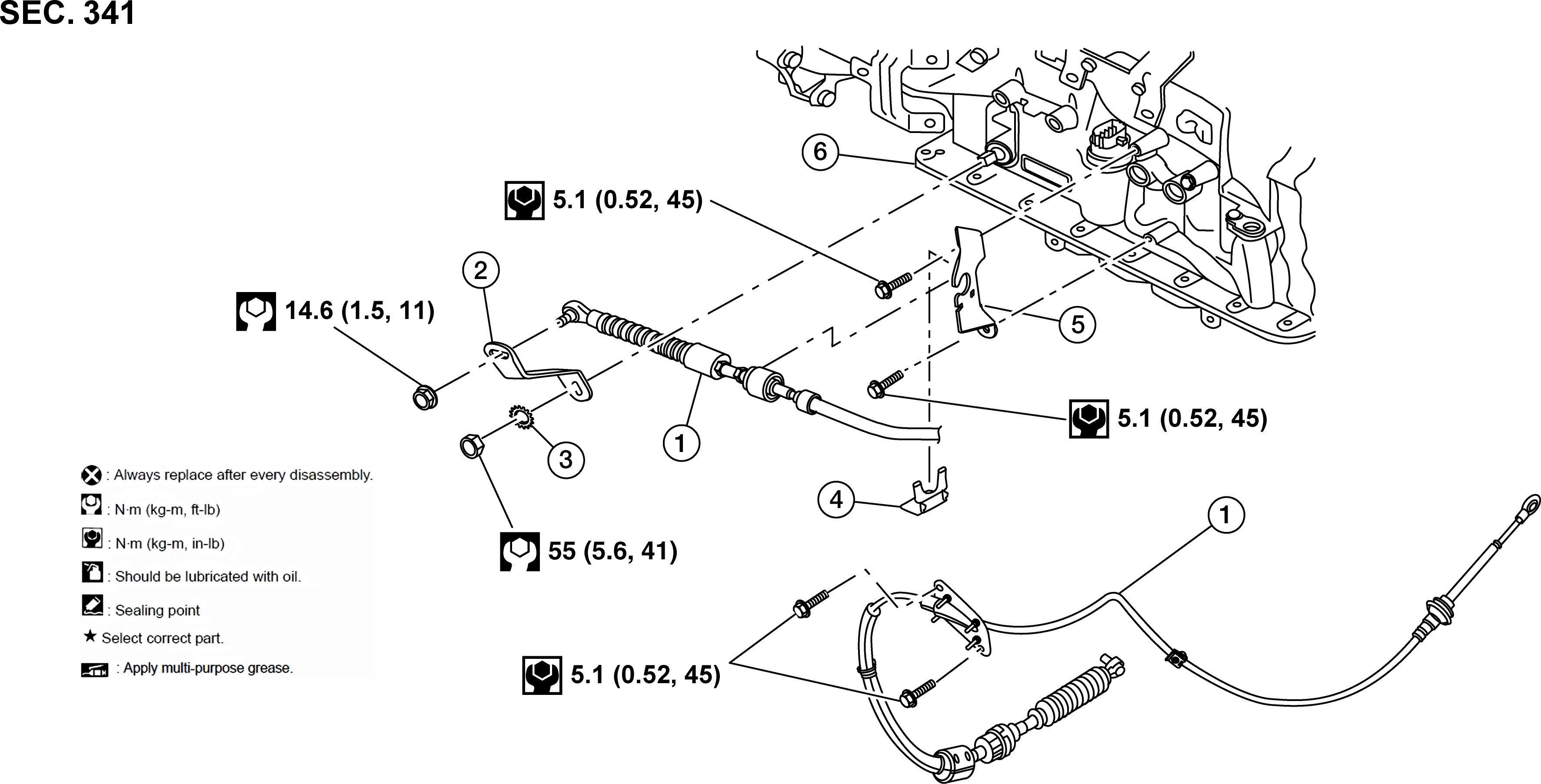

Exploded View

WARNING: This page is about a different variant/trim than selected.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Control cable	2.	Manual lever	3.	Washer
4.	Lock plate	5.	Control cable bracket	6.	A/T assembly
