Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

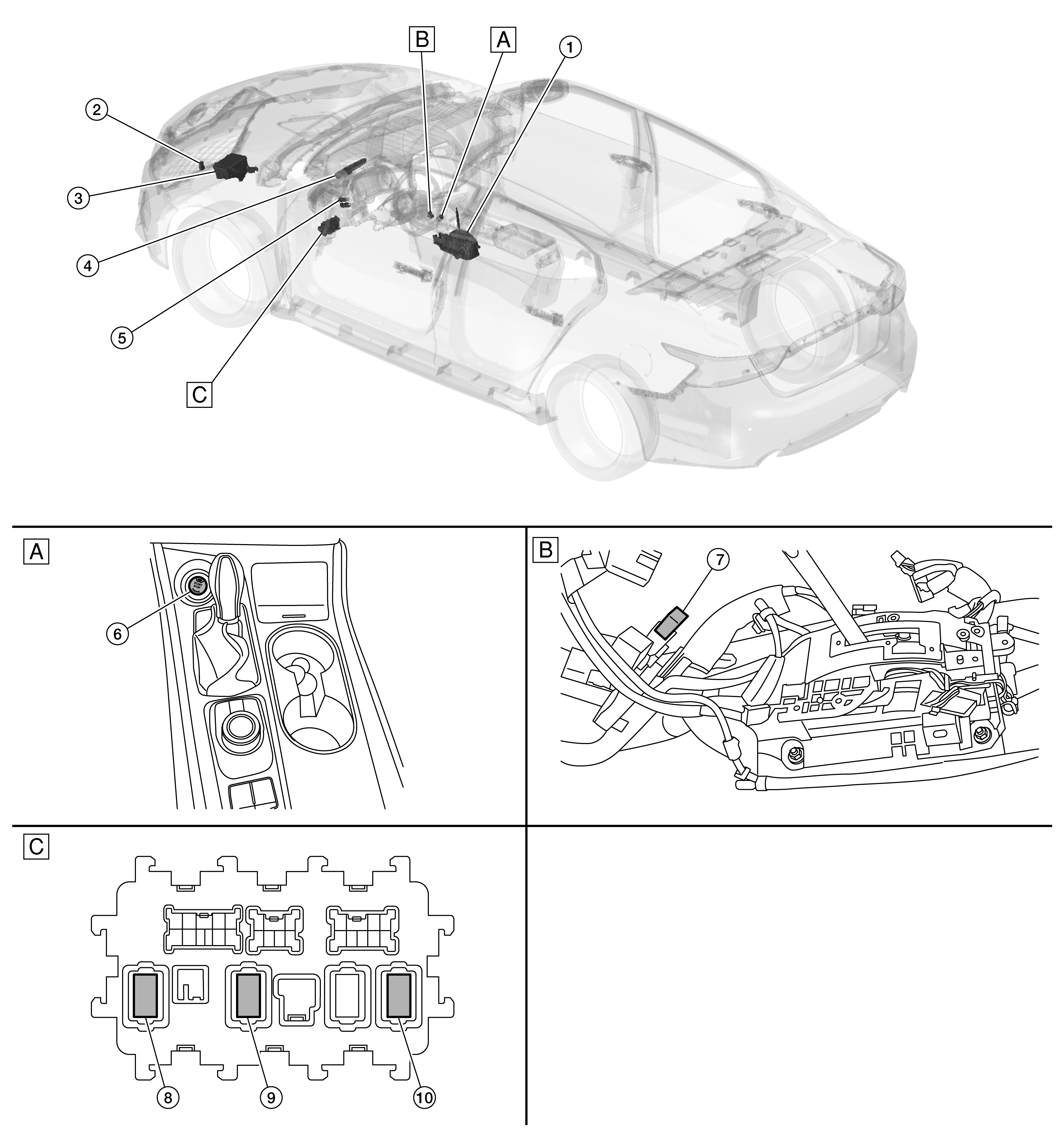

Courtesy of NISSAN NORTH AMERICA, INC.

A.	Front of center console	B.	Behind front of center console (view with center console finisher removed)
C.	Instrument lower panel LH

No.	Component	Function
1.	CVT shift selector	CVT shift selector detects shift lever status, transmits detention switch signal to BCM. Refer to Component Parts Location for detailed installation location.
2.	Stop lamp relay	Refer to Component Parts Location (LED headlamp) or Component Parts Location (halogen headlamp).
3.	IPDM E/R	IPDM E/R detects push-button ignition switch (push switch) status, and transmits push-button ignition switch status signal (CAN) to BCM. IPDM E/R receives ignition relay (IPDM E/R) control signal and ignition switch ON signal (CAN) from BCM, and controls ignition relay (built in IPDM E/R) Refer to Component Parts Location for detailed installation location.
4.	BCM	BCM controls power distribution system. BCM judges ignition switch position by push-button ignition switch (push switch) and vehicle condition. BCM checks the ignition switch position internally. Refer to Component Parts Location for detailed installation location.
5.	Stop lamp switch	Stop lamp switch detects that brake pedal is depressed, and transmits the signal to BCM. Refer to Stop Lamp Switch (without ICC) or Stop Lamp Switch (with ICC).
6.	Push-button ignition switch	Refer to Push-button Ignition Switch .
7.	Accessory relay-2	Accessory relay-2 is controlled by BCM. Accessory relay-2 supplies accessory power supply or ignition ON signal to each ECU when ignition is turned ON. BCM compares status of accessory relay-2 control signal, and ignition position judged by BCM.
8.	Ignition relay-2 (in fuse block)	Ignition relay-2 is controlled by BCM. Ignition relay-2 supplies ignition ON power supply or ignition ON signal to each ECU and system when ignition is turned ON. BCM compares status of ignition relay-2 control signal and ignition position judged by BCM. BCM monitors ignition relay-2 operating status by ignition relay-2 feedback signal.
9.	Front blower motor relay (in fuse block)	Front blower motor relay is controlled by BCM. Front blower motor supplies ignition ON power supply or ignition ON signal to air conditioning system when ignition is turned ON. BCM compares status of front blower motor relay control signal and ignition position judged by BCM.
10.	Accessory relay-1 (in fuse block)	Accessory relay-1 is controlled by BCM. Accessory relay-1 supplies accessory power supply or ignition ON signal to each ECU when ignition is turned ON. BCM compares status of accessory relay-1 control signal, and ignition position judged by BCM.
