Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front air duct. Refer to Removal and Installation .
  2. Remove battery. Refer to Removal and Installation (Battery) .
  3. Disconnect the harness connectors from the ECM. Refer to Harness Connector .

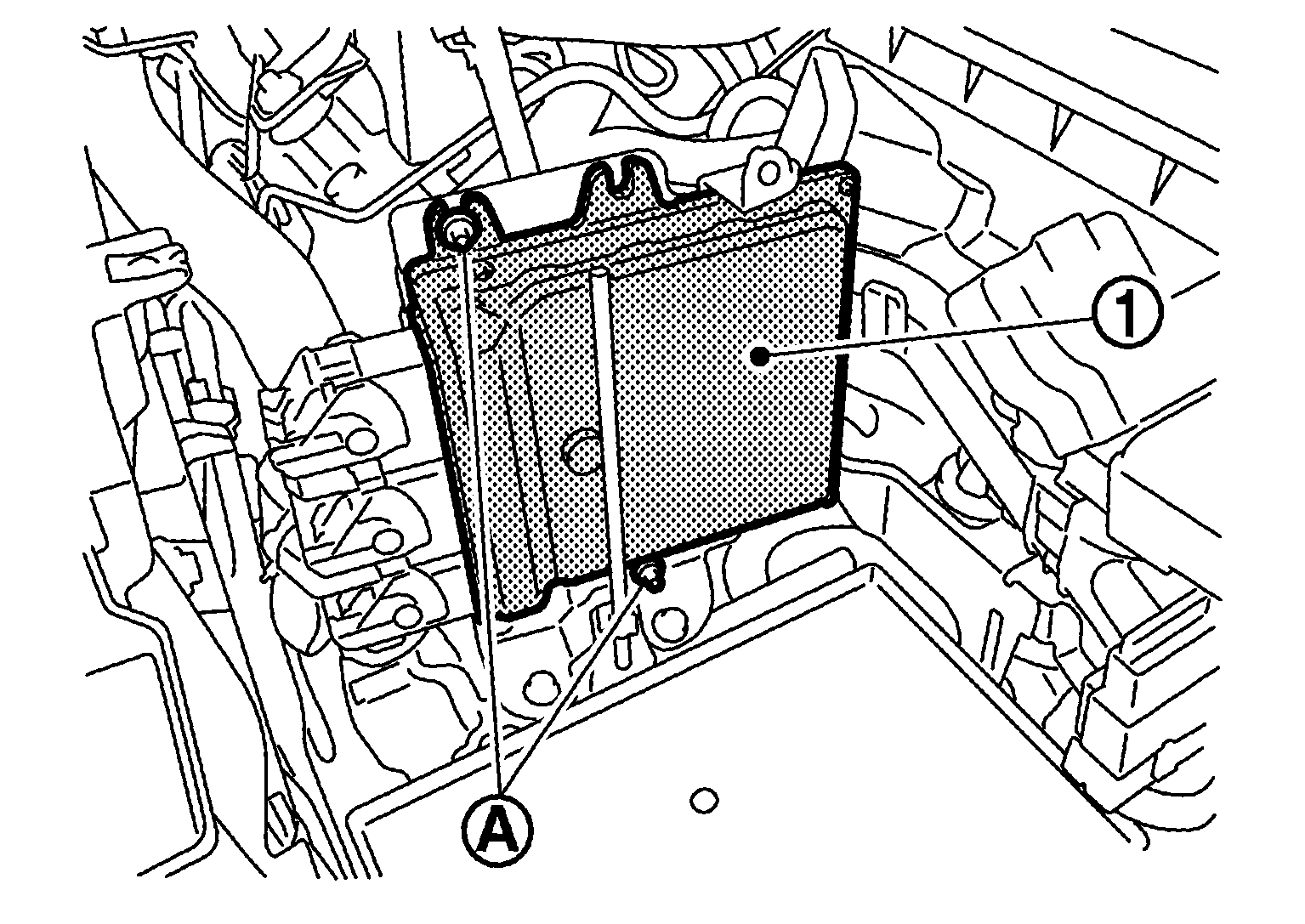

  4. Remove ECM nuts (A), and then remove ECM (1).
    G07051302Courtesy of NISSAN NORTH AMERICA, INC.
